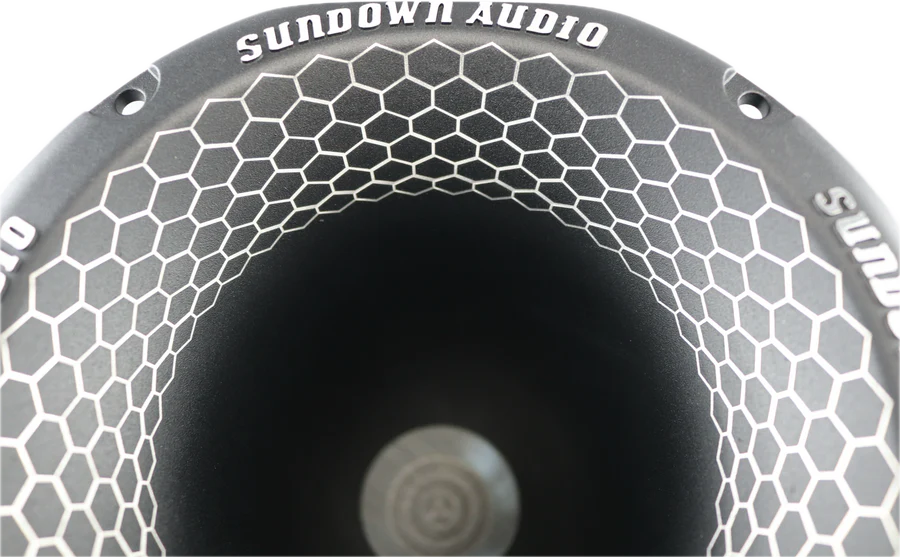

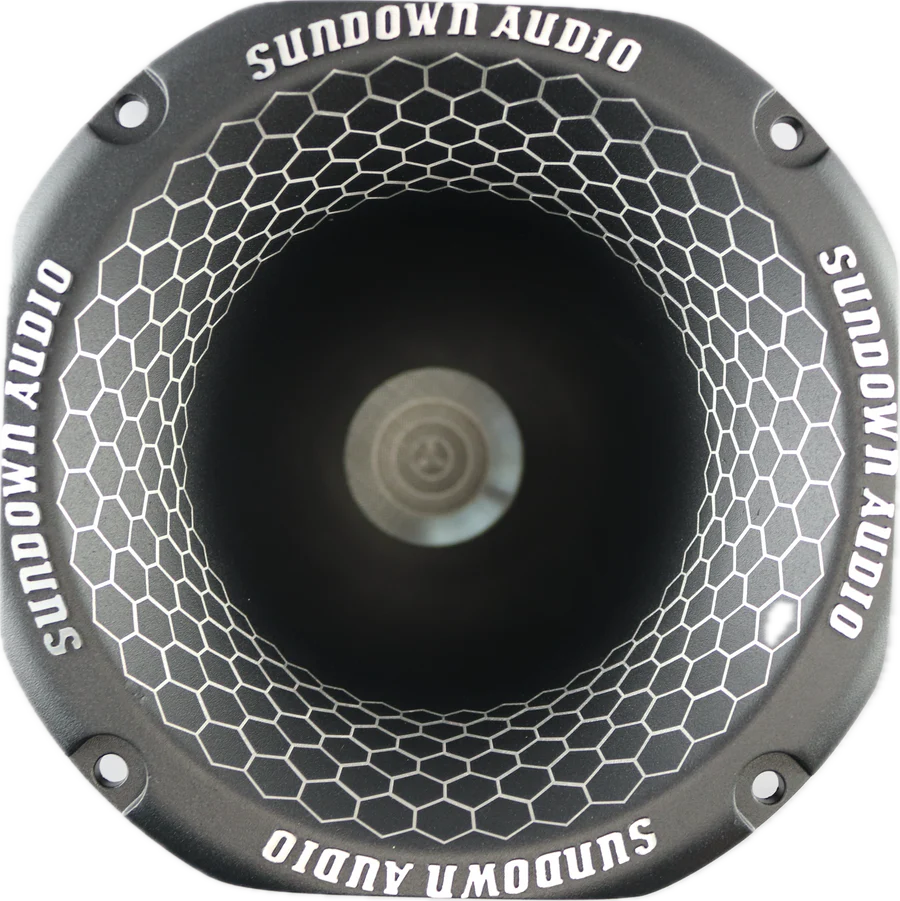

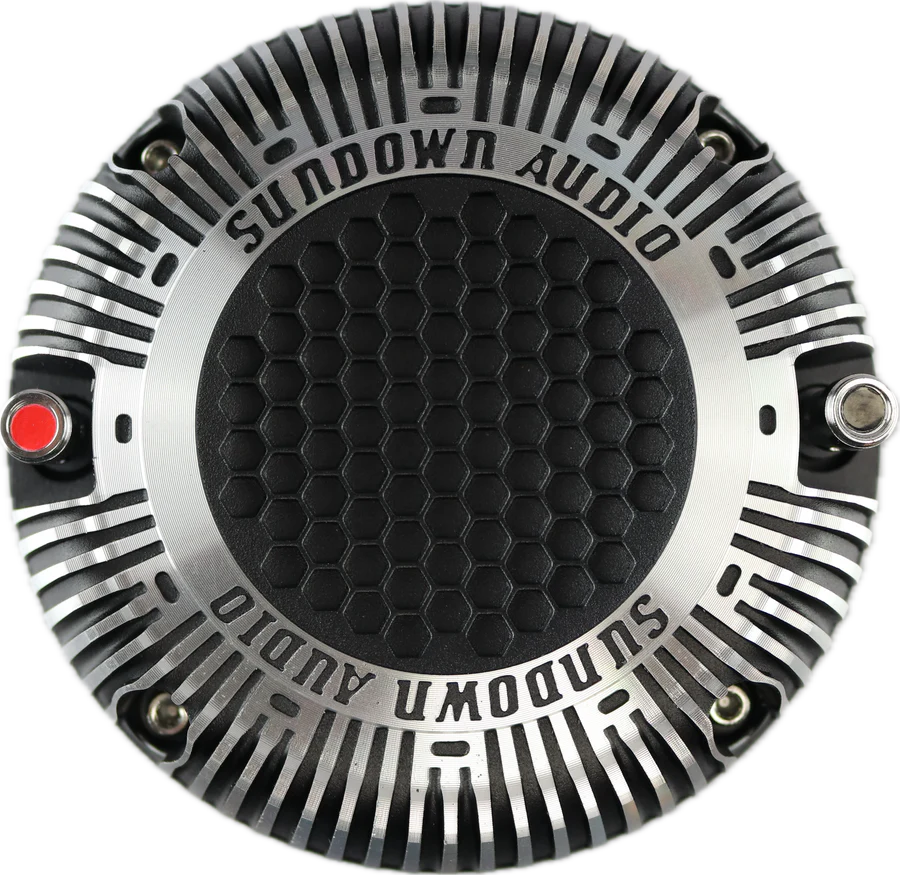

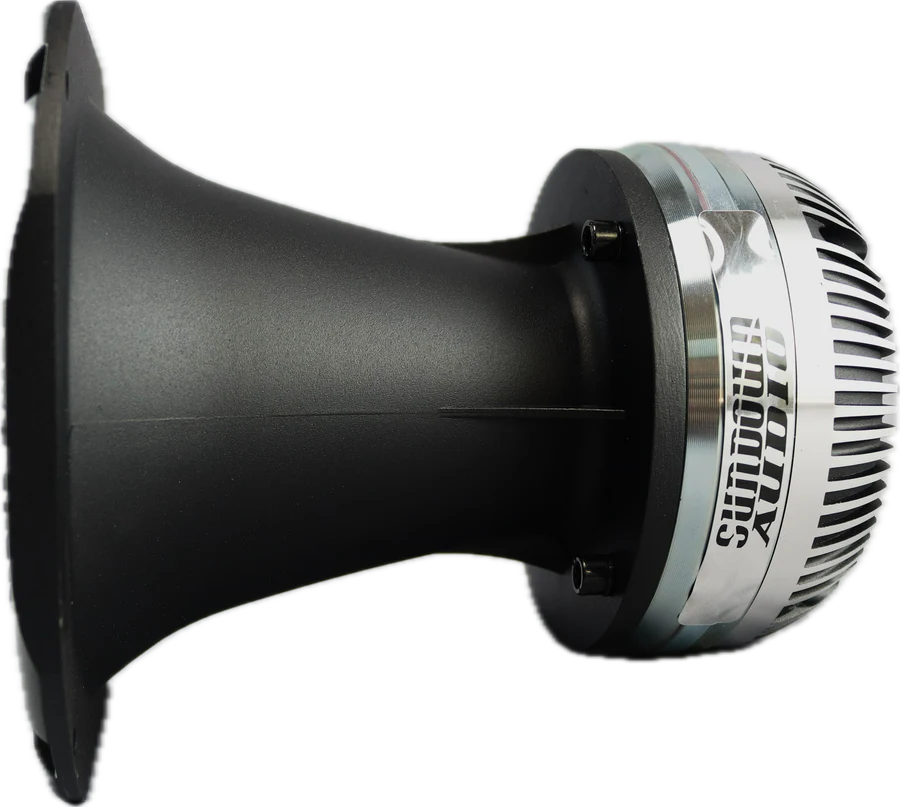

SHNMD 2" Throat Super Horn With NEO Magnet

• 2in Horn driver
• NEO Magnet
• Die-cast Aluminium Cover
• Die-cast Aluminium Horn
• Titanium Diaphragm
• 4 Ohm
• 110 Wrms
•  Exit Throat Diameter @ inch – 2
• Rated Impedance @Ohm – 4
• Power Handling Capacity @ Watt – 110
• Program Power @Watt – 220
• Sensitivity(1W/1m) @ Hz – 120
• Frequency Range @ Hz - 600-20,000
• Voice Coil Diameter @ inch - 3
• Voice Coil Material - CCAR
• Voice Coil Former Material - Kapton
• Voice Coil Winding Depth @ mm - 3
• Cutout – 6”
• Mounting Depth – 6.8”
• Gap Height @ mm – 3.5
• Magnet Type - Neodymium
• Driver Size @ in 4.9*2.18”
• Back Cover Material – Die-cast Aluminium
• Diaphragm Material - Titanium
• Horn Material – Die-cast Aluminium
• Product Dimension @ in - L7.25*W7.25*H7.19”

Key Features:

• Powerful Output: Rated at 110W RMS and 220W program power, this driver provides robust sound performance suitable for demanding audio setups.
• Wide Frequency Range: Operates efficiently across 600Hz to 20,000Hz, ensuring clear and dynamic audio reproduction from mid to high frequencies.
• High Sensitivity: With a sensitivity of 120 dB (1W/1m @ Hz), it minimizes power consumption while delivering maximum sound output.

Premium Build:

• Diaphragm Material: Titanium diaphragm ensures durability and accurate sound reproduction.
• Voice Coil: Features a 3-inch CCAR (Copper Clad Aluminum Ribbon) voice coil on a Kapton former for excellent thermal and mechanical stability.
• Horn and Back Cover: Constructed with die-cast aluminum for lightweight strength and enhanced sound dispersion.
• Magnet Type: Equipped with a Neodymium magnet for high magnetic flux and reduced weight.

Specifications:

• Exit Throat Diameter: 2 inches
• Impedance: 4 Ohms
• Cutout Size: 6 inches
• Mounting Depth: 6.8 inches
• Driver Size: 4.9 x 2.18 inches
• Product Dimensions: 7.25 x 7.25 x 7.19 inches (L x W x H)

Additional Details:

• Voice Coil Winding Depth: 3 mm
• Gap Height: 3.5 mm
• Materials: Die-cast aluminum components, Kapton former, and titanium diaphragm for a robust and reliable build.
