Product Description

"

B2 Audio Reference Series 6.5"" 3-Way Component Set w/ 3"" Mids & 1"" Tweeters

This Listing Includes:

• (2) 6.5"" Bamboo Infused Paper Cone Mid-woofer
• (2) 3"" Bamboo Infused Paper Cone Midrange
• (2) 1.6"" Silk Dome Tweeter
• (2) Crossovers
• (1) Set of White Gloves
• (1) Spec Sheet
• Mounting Hardware
• (1) B2 Audio Black Hard Case

Unleash the full potential of your sound system with the B2 Audio Reference Series 6.5"" 3-Way Component Set, an audio powerhouse designed to deliver unparalleled sound quality and intense performance. This expertly engineered set includes dynamic 6.5"" speakers, robust 3"" mids, and precision 1"" tweeters, working in perfect harmony to provide a sonic experience thats both explosive and clear.

Feel your music come alive as thunderous mids and searing highs blend seamlessly, creating a balanced and immersive soundstage. The included premium crossovers ensure every frequency is delivered with pinpoint accuracy, bringing out the rich nuances and bold details in your favorite tracks.

Whether you crave deep bass, crystal-clear vocals, or a full-range auditory adventure, this 3-way component set is tailored to exceed your expectations. Elevate your listening experience to new heights with the uncompromising performance of the B2 Audio Reference Serieswhere extraordinary sound meets exceptional craftsmanship.

Don't just listen to music; feel it with every beat and note. Step up to the next level of audio innovation with the B2 Audio Reference Series and transform your sound system into a true symphony of power and precision!

Specifications:

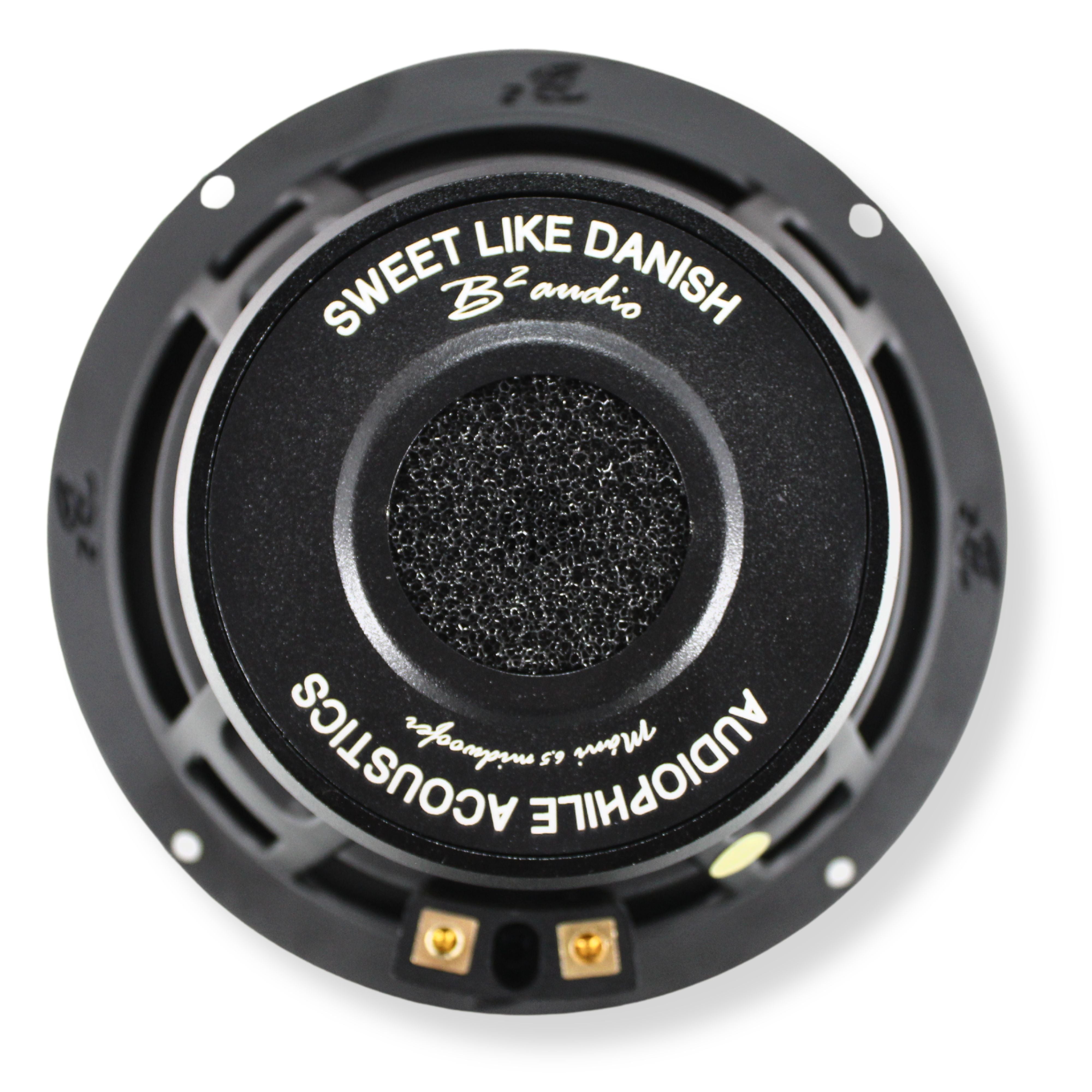

6.5"" Mid-woofer:

• Max Power Handling: 100W
• Nominal Impedance: 4-Ohm
• Voice Coil Diameter: 1.2""
• Magnet: Strontium Magnet Structure
• Frequency Response: 50 Hz - 25 KHz

3"" Midrange:

• Max Power Handling: 50W
• Nominal Impedance: 5.2-Ohm
• Voice Coil Diameter: 1""
• Magnet: Strontium Magnet Structure
• Frequency Response: 50 Hz - 25 KHz

Tweeter:

• Max Power Handling: 30W
• Nominal Impedance: 4-Ohm
• Voice Coil Diameter: 1""
• Magnet: Neodymium Magnet Structure
• Frequency Response: 50 Hz - 25 KHz

THIELE AND SMALL PARAMETERS:

6.5"" Mid-woofer:

• Free Air Resonance (Fs): 55 Hz
• Resistance (Re): 3.6-Ohm
• Mechanical Factor (Qms): 2.68
• Electrical Factor (Qes): 0.50
• Total Factor (Qts): 0.42
• Mechanical Resistance (Rms): 2.45
• Equivalent Volume (Vas): 11.67 L
• L Efficiency: 0.53 %
• Compliance (Cms): 439 um/N
• BL Factor (BL): 6.39 TM
• Moving Mass (Mms): 16.4 g
• Sound Pressure Level (SPL): 89.6 dB
• Le: 0.264 mH

3"" Midrange:

• Free Air Resonance (Fs): 159 Hz
• Resistance (Re): 5-Ohm
• Mechanical Factor (Qms): 5.54
• Electrical Factor (Qes): 1.43
• Total Factor (Qts): 1.14
• Mechanical Resistance (Rms): 0.51
• Equivalent Volume (Vas): 0.5 L
• L Efficiency: 0.142 %
• Compliance (Cms): 354 um/N
• BL Factor (BL): 3.2 TM
• Moving Mass (Mms): 2.8 g
• Sound Pressure Level (SPL): 83.6dB
• Le: 0.21

Tweeter:

• Free Air Resonance (Fs): 1250 Hz
• Resistance (Re): 3.9-Ohm
• Mechanical Factor (Qms): 0.76
• Electrical Factor (Qes): 2.43
• Total Factor (Qts): 0.58
• Equivalent Volume (Vas): 0.001 L
• Compliance (Cms): 5.7 um/N
• BL Factor (BL): 6 TM
• Moving Mass (Mms): 2.8 g
• Sound Pressure Level (SPL): 84 dB

MEASUREMENTS

6.5"" Mid-Woofer:

• Overall Diameter: 6.39"" / 161 mm
• Mounting Diameter: 5.31"" / 135 mm
• Overall Depth: 3.2"" / 81.2 mm
• Mounting Depth: 2.93"" / 74.5 mm

3"" Midrange:

• Overall Diameter: 3.6"" / 91.4 mm
• Mounting Diameter: 2.6"" / 65 mm
• Overall Depth: 1.91"" / 48.6 mm
• Mounting Depth: 1.53"" / 38.9 mm

Tweeter:

• Overall Diameter: 2.2"" / 55.8 mm
• Mounting Diameter: 1.9"" / 48.4 mm
• Overall Depth: 1.04"" / 26.3 mm
• Mounting Depth: 0.61"" / 15.6 mm

"
