• Enhanced Subwoofer Performance: The RAGE8-D4-V2 subwoofer features a redesigned Bolted down spider and additional pole vents for increased power handling and minimized mechanical noise.
• Custom Carbon Fiber Dustcap: The new protruding logo on the carbon fiber dustcap adds rigidity and strength to the cone, ensuring stable performance even at high volumes.
• Powerful Audio Output: With a frequency response of 10 Hz to 500 Hz and a power handling of 500 Watts RMS, this subwoofer delivers deep, impactful bass.
• Dual Voice Coil Configuration: Dual 4-Ohm impedance allows for versatile wiring options, making it compatible with various amplifier setups.
• Premium Construction: Built with quality materials and a 2" voice coil diameter, this subwoofer offers durability and longevity for long-term use.

B2 Audio RAGE Series 8" Dual 2" Voice Coil 4-Ohm 500W RMS Subwoofer RAGE8-D4-V2

This Listing Includes:

• (1) 8" DVC 4-ohm  RAGE Subwoofer

Get ready to experience pure sonic aggression with the B2 Audio RAGE8-D4-V2 8" Dual Voice Coil Subwoofer. With its redesigned spider configuration and six extra pole vents, this subwoofer packs a 25% power handling increase over its predecessors, delivering thunderous bass without compromise. Its custom composite fiber dustcap adds strength and attitude, while its dual 4-Ohm impedance offers wiring versatility for any amplifier setup. With a frequency response ranging from 10 Hz to 500 Hz and a power handling of 500 Watts RMS (1000 Watts peak), this subwoofer promises relentless performance. Built tough with premium materials and a 2" voice coil diameter, it's ready to dominate the audio landscape with bass that bites back.

Specifications:

• RMS Power Handling: 500W
• Max Power handling: 1000W
• Nominal Impedance: Dual 4 Ohm
• Voice Coil Diameter: 2"
• Frequency Response: 10 Hz ~ 500 Hz
• Sensitivity: 82.4 dB
• Magnet Weight: 175 Oz
• Displacement: 2.5 L / 0.088 cu.ft

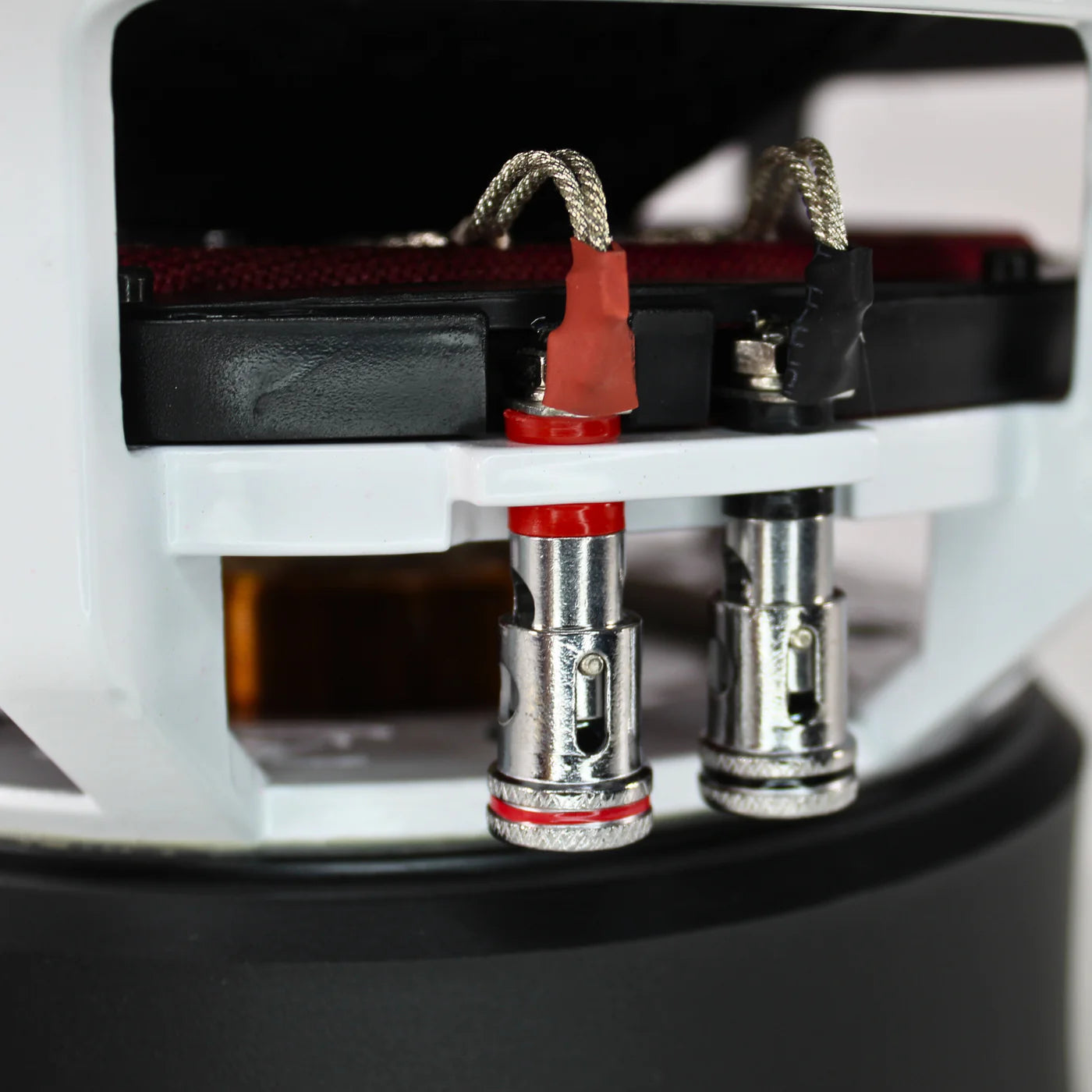

• 12 AWG Wire Inputs For Push Terminals

Thiele & Small

• Free Air Resonance (Fs): 40.9 Hz
• Resistance (Re): 3.2 Ohm
• Mechanical Factor (Qms): 5.64
• Electrical Factor (Qes): 0.54
• Total Factor (Qts): 0.47
• Equivalent Volume (Vas): 5.9 L
• Compliance (Cms): 110 um/N
• Moving Mass (Mms): 129.7 g
• BL Factor (BL): 69.5 TM
• Excursion Max (Xmax): 0.59" / 15 mm

Dimensions:

• Overall Diameter: 8.66" / 220mm
• Mounting Diameter: 7.83" / 199mm
• Front Mount Baffle Cutout: 7.28" / 185mm
• Overall Depth: 6.57" / 167mm
• Mounting Depth: 5.31" / 135mm

Enclosure Suggestions:

Sealed:

• 7.6L / 0.269 cu.ft
• Qtc 0.513

Ported Compact:

• 15L / 0.53 cu.ft
• Port: 2"
• Length : 7.16" / 18.2 cm
• FB: 42 Hz

Ported:

• 28L / 0.636 cu.ft
• Port Area: 7.75 sq.in
• Length: 3.34" / 33.9 cm
• FB: 38 Hz

4th Order Bandpass: 3:1 Ratio
