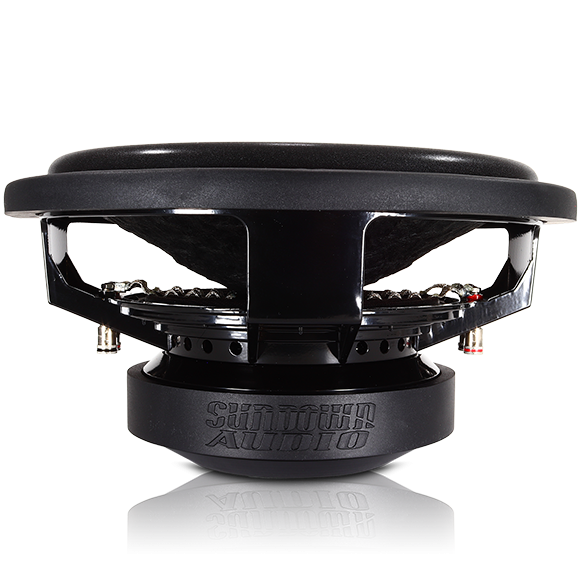

The Sundown SLD series can be considered a "re-boot" of the SD-2 line from 2011. The SD-2 was essentially a shallow SA v1 by design  meaning it shared the cone, surround, and spider with the SA but with a shorter motor with a shorter coil. The SD series went another route starting with the 3rd generation (SD-3)  tilting more towards SQ and sealed enclosures (this remains true for the SD-4 series as well). Due to popular demand we created the SLD series to add a heavily abuse tolerant shallow that likes ported boxes back into the line-up!

Much like the current SD-4 series we utilized solid pole-piece so the SLD can also be mounted directly against the rear enclosure wall to reduce net depth requirements. Compared to the old SD-2 we have introduced numerous important upgrades: pole-piece channels for reduced air noise & increased cooling, top-plate slitsfor better cooling and less distortion, and a magnet ID shorting ring. In terms of long-term reliability we have also bolted down the spider, bolted the motor together, bolted on the aluminum pole cap, and added mini-XLlead wires thus ensuring many years of flawless service.

The bottom line is if you need a relatively shallow woofer that will take a beating then the SLD is, hands-down, the woofer for you from our line. If you are looking for more SQ then look toward the SD-4 series.

• Features

  • Xmax = 12mm one-way by 70% BL
  • Xmech is a hard limit of 25mm one-way (being over 2x the Xmax it is a very generous limit)
  • RMS Power = 600-watts
  • Black Aluminum 2.5" voice coil former for superior heat dissipation
  • High Temperature 4-Layer copper voice coil wire
  • Stitched-On Mini-XL Tinsel Leads to prevent fatigue and failure
  • Solid Pole with high velocity vent channels machined around the OD
  • Vented, EMD Cut, Top-Plate Design
  • Bolt-through motor design to ensure maximum longevity and ruggedness against mechanical failures
    ** This motor is bolted through the top so the bolts are not visible from the back like several other models.
  • Magnet ID shorting ring

  SLD 12"

  T/S SPECS	SLD 12 D2	SLD 12 D4
  RE (Ohms)	3.65	6.85
  FS (Hz)	42.959	45.142
  VAS (L)	26.889	29.481
  Qes	0.691	0.619
  Qms	2.227	2.298
  Qts	0.415	0.487
  Le (mH)
  BL (NA)	19.868	23.025
  Mms (Grams)	204.319	168.773
  Cms (uM/N)	67.177	73.652
  Sens (dB @ 1w/1m)	88.1	88.3



  SLD 12"

  Sealed Enclosure	1.0 cu ft
  Ported Enclosure	1.5 cu ft
  Recommended Tuning	35Hz
  Recommended Port Area	26 sq in
  Displacement
  Depth	5.45"
  Outside Diameter	12.625"
  Cut-Out	11.125"
  Physical Dimensions
