Product Description

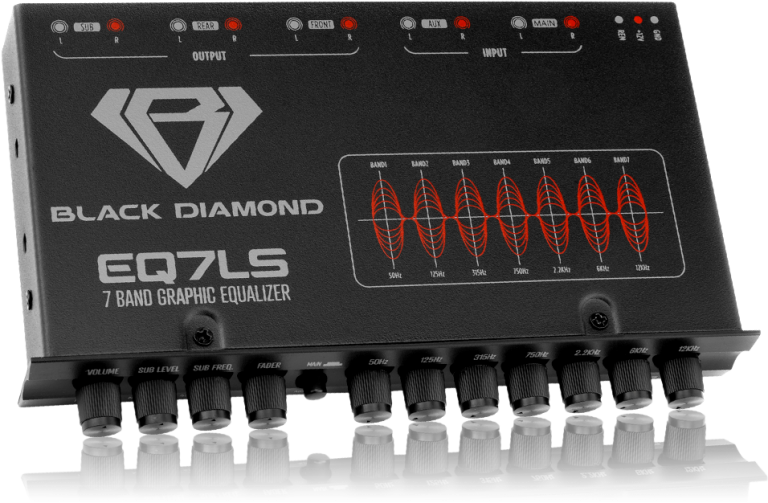

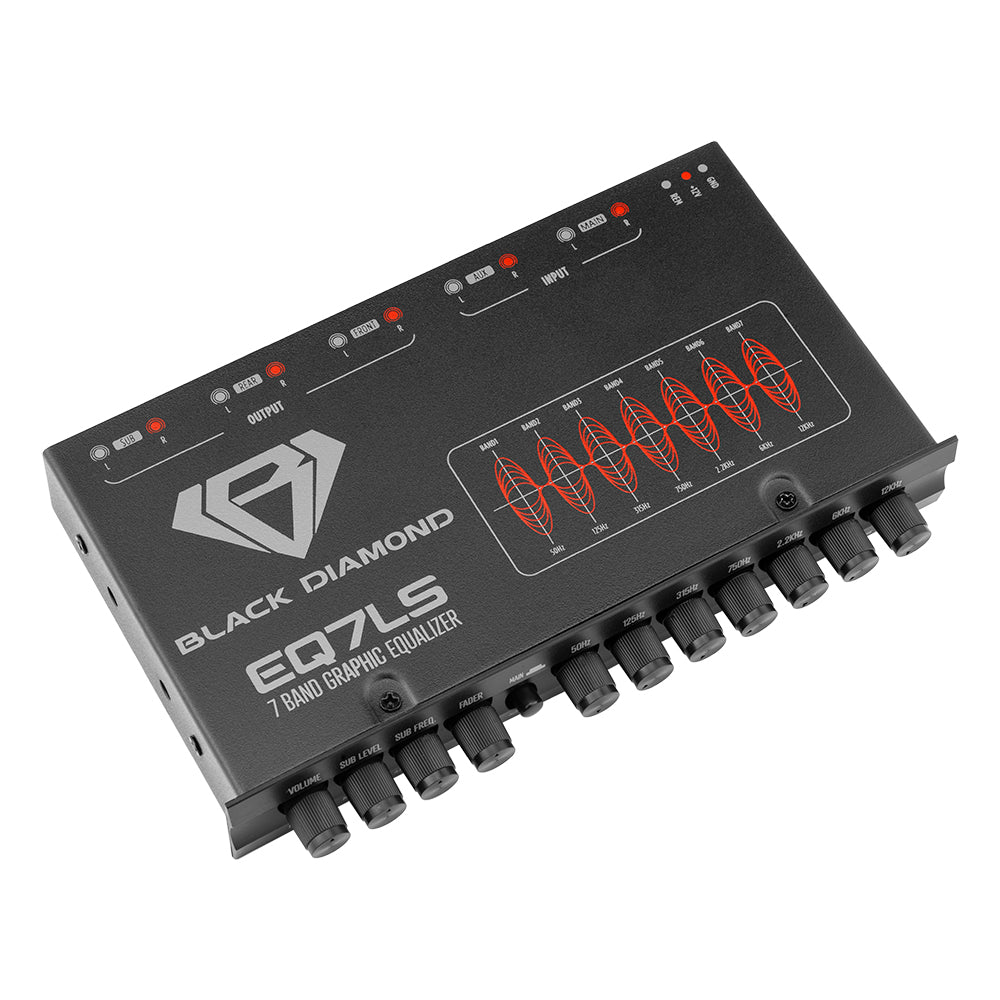

Black Diamond 7 Band Graphic Equalizer with Subwoofer Section EQ7LS

Customize your music with this Black Diamond 7 Band Graphic Equalizer. Has a subwoofer section with adjustable LPF crossover.
Separate volume controls for main and subwoofer. Includes RCA auxiliary input with switch selector and has an extended frequency response from 10Hz to 30kHz. Hi-Volt 6 channels Output (Front & Rear: 5 Volt /Subwoofer: 8 Volts).

This Listing Includes:
- (1) 7 Band Graphic Equalizer -DIA-EQ7LS
- (2) Metal Mounting Bracket's
- (4) Large Phillip head screw's
- (4) Small Phillip head mounting screw's
- (1) 3-Pin adapter
- (1) Owner's Manuel

FEATURES:

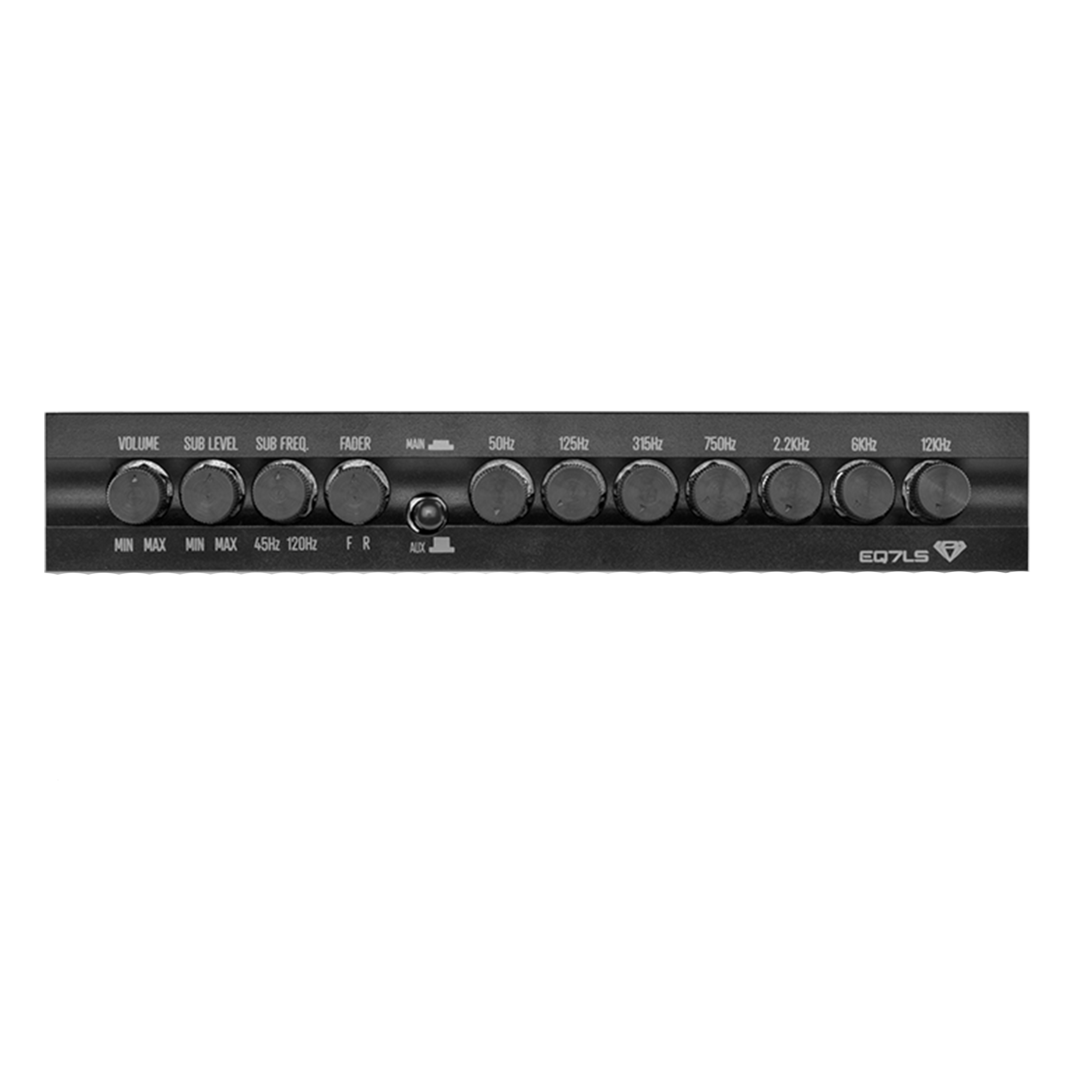

- 7 band Equalizer (50hz, 125Hz, 315Hz, 750Hz,2.2kHz, 6kHz and 12kHz) with a cut / boost of 12dB.
- Subwoofer section with adjustable LPF crossover from 45Hz to 120Hz at 12dB / oct.
- Hi-Volt 6 channels Output (Front & Rear: 5 Volt / Subwoofer: 8 Volts).
- Separate volume controls for main and subwoofer.
- Fader knob to easy Front and Rear output selection.
- RCA auxiliary input with switch selector.
- Extended frequency response from 10Hz to 30kHz with exceptional sound quality.

SPECIFICATIONS:
- Graphic Center Frequencies: 50Hz, 125Hz, 315Hz, 750Hz, 2.2KHz, 6KHz, 12KHz
- Boost / Cut: 12dB
- S/N Ratio: 95dB
- Frequency Response: 110hz-30khz +/- 1dB
- Maximum Output Voltage: 8V
- T.H.D: 0.05%
- Input Sensitivity: 50mV - 3V
- Head Room: 20dB
- Input Impedance: 20K OHMS
- Output Impedance: 2K OHMS
- Stereo Separation: 82dB/1KHz
- Operating Voltage: 11V-15V Negative Ground

DIMENSIONS:
- Length: 7.24"
- Width: 3.83"
- Height: 1.18"
