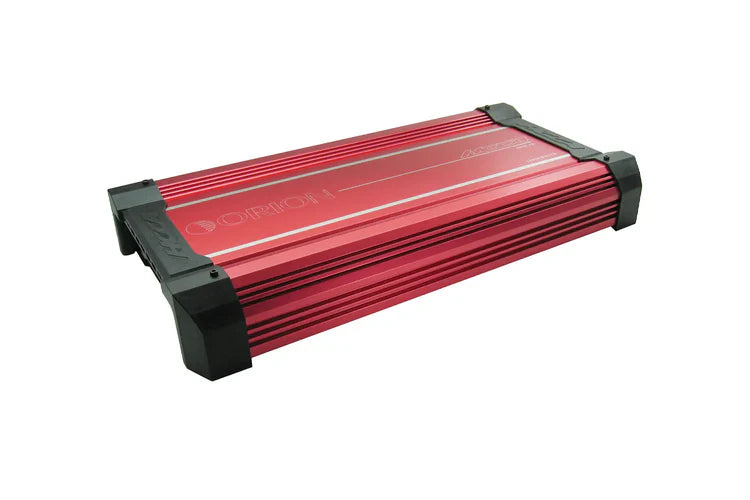

ORION HCCA5000.1DSPLX HCCA Series 5000W RMS 1-Channel Class-D Amplifier
The HCCA5000.1DSPLX Class D Amplifier is a powerhouse built for serious car audio enthusiasts and SPL (Sound Pressure Level) competitors. Delivering a jaw-dropping 5,000 watts RMS at 1 ohm, this amp pushes your subwoofers to their maximum potential, producing earth-shaking bass and complete control. Engineered with cutting-edge Class D technology, the HCCA5000.1DSPLX ensures maximum efficiency, allowing for high output without generating excessive heat.

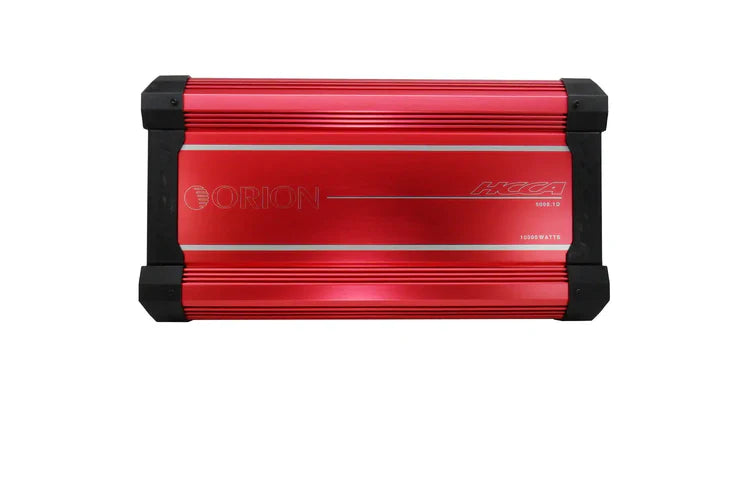

Designed in the iconic HCCA Red, this amplifier not only performs but looks stunning in any audio setup. Built tough, it features advanced protection circuits to prevent overheating, short circuits, and overloads, guaranteeing reliable performance during the most demanding sessions. Its design makes installation straightforward while delivering the superior power needed for competition-level sound.
Whether you’re aiming for top SPL competition results or just want unmatched sound quality in your vehicle, the HCCA5000.1DSPLX Class D Amplifier offers the ultimate in performance, durability, and style.
Class D Amplification - Experience the epitome of efficiency and power with Class D amplification, delivering unparalleled and precise sound reproduction.
5000 Watts RMS - Immerse yourself in a realm of unmatchable audio power with 5000 Watts RMS, delivering commanding and precise sound performance.
Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
Compact and Stylish Design - The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
12/24dB / Octave Low-Pass Filter
Remote Gain Controller Included
Low-Level and High-Level Balanced Input
Infrasonic Filter

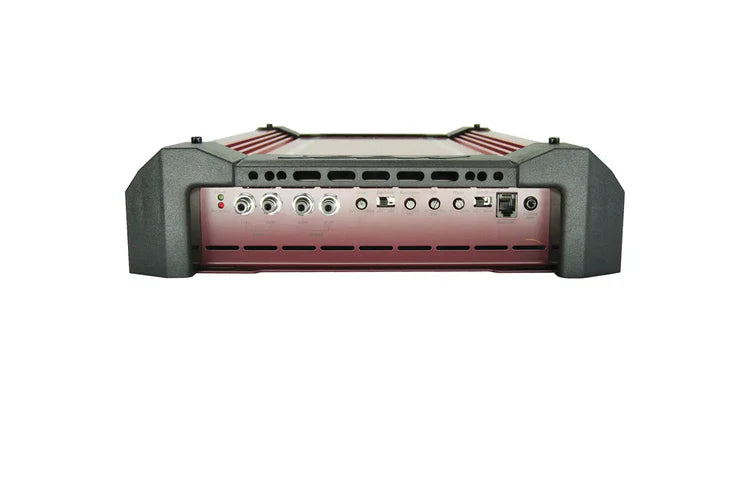

Concealed Controls Under Locking Top Panel Orion Patented ESP®
Digitally Programmed Input Voltage for Fast, Accurate System Setup
Input Sensitivity Lock-Out Mode Lock the Tweekers Out!
Turn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
- RMS Power @ 4 Ohms @ 0.5% THD+N: 2300W
- RMS Power @ 2 Ohms @ 0.5% THD+N: 3600W
- RMS Power @ 1 Ohm @ 0.5% THD+N: 5800W
- Linked with identical Amplifier
RMS Power @ 2 Ohms @ 0.5% THD+N: 11600W

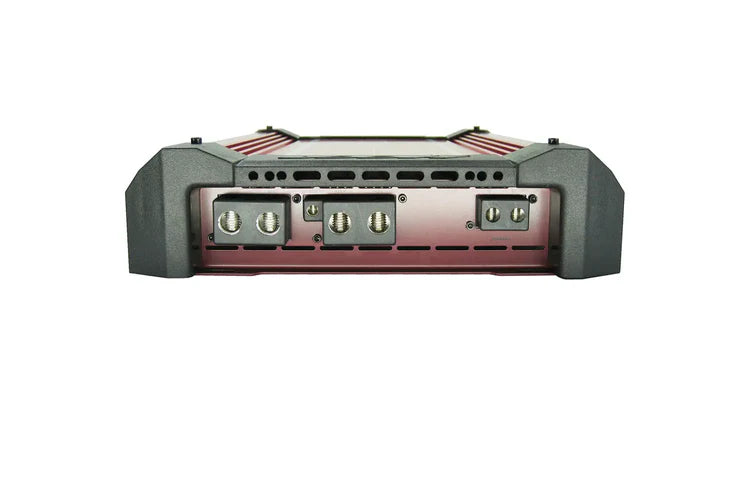

POWER TERMINAL MANAGEMENT
Positive Terminals: 3 x 0 AWG.
Negative Terminals: 3 x 0 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 4 AWG.
- Frequency Response: 15Hz - 250Hz
- Low Pass Crossover: 40Hz - 300Hz
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >88%
- Damping Factor: 200dB
- Signal to Noise Ratio: >90dB
- T.H.D. & Noise: 0.5%
- Input Impedance: 24K Ohms
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Subsonic Filter: 10 - 40Hz
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 500A recommended (not included)
- Dimensions (L x W x H): 20.47" x 11.89" x 3.15" (520x302x80mm)
