Product Description

"

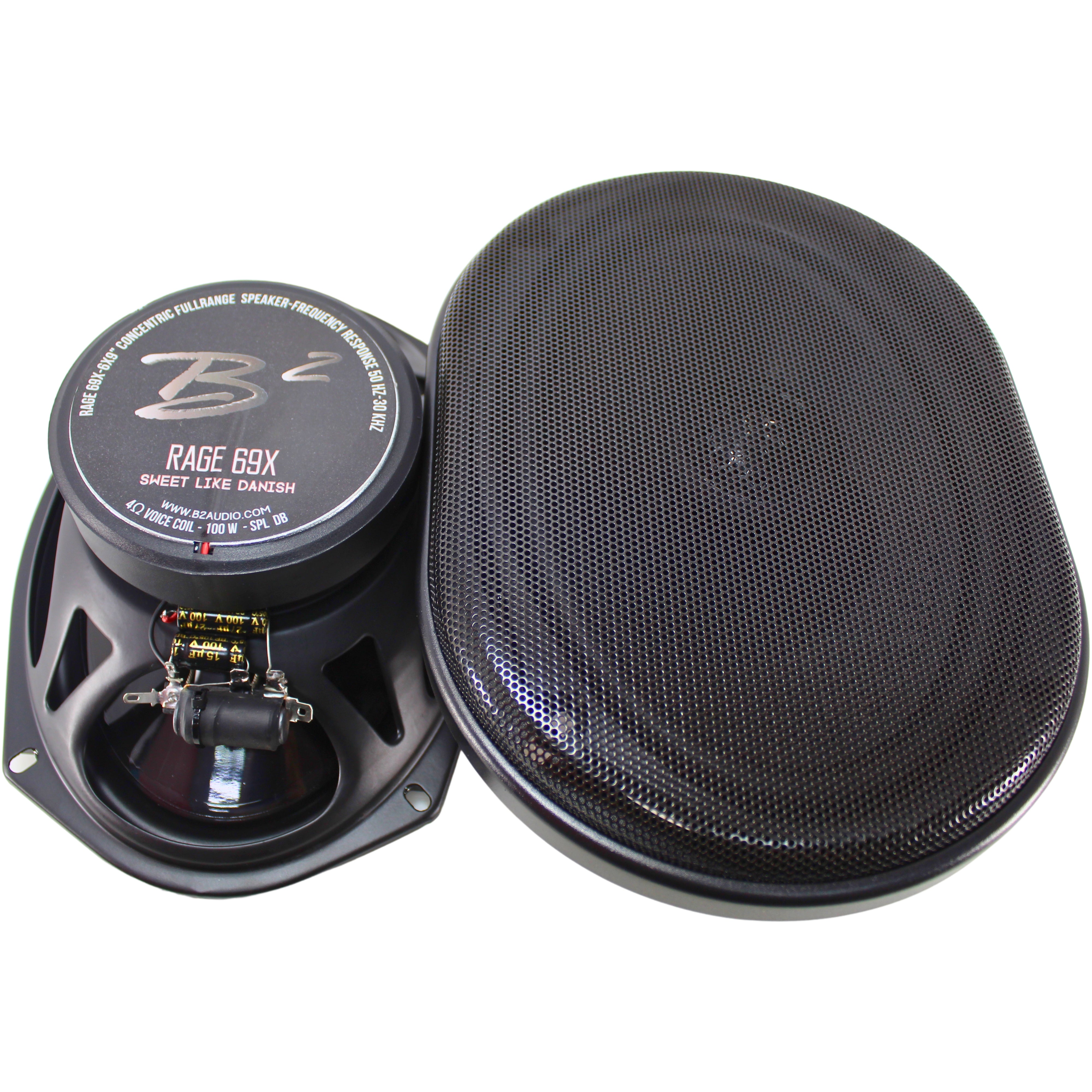

B2 RAGE Series 6x9"" 100W 4-Ohm SVC Concentric Full Range Speaker Set / RAGE69X

This Listing Includes:

• (2) B2 Audio RAGE 6x9"" 100W Coaxial Speakers

Description:

The B2 RAGE Series 6x9"" 100W 4-Ohm SVC Concentric Full Range Speaker Set is engineered to elevate your audio experience with unparalleled clarity and power. Perfect for car audio enthusiasts and custom installations, these speakers deliver dynamic and immersive sound. Featuring a robust 100-watt RMS power output and a wide frequency response from 50 Hz to 30 KHz, the B2 RAGE Series captures every detail of your music, from deep, resonant bass to sparkling highs. The innovative concentric full-range design ensures uniform sound distribution, making every seat the best seat in the house. With a 4-ohm impedance, these speakers are optimized for efficiency and compatibility with various amplifiers, providing superior sound quality in any setup.

Features:

• Resonance (natural) Frequency: 55 Hz
• Winding Material: CCA
• Magnet Type: Neo / Ferrite
• Cone Material: IMWRP
• Surround Type: U Shaped Rubber

Specifications (Per Speaker):

• RMS Power Handling: 100W
• Maximum Power Handling: 300W
• Nominal Impedance: 4-Ohm
• Voice Coil Diameter: 1"" / 25.4 mm
• Magnet Weight: 20.6 OZ
• Frequency Response: 50 Hz - 30 KHz
• Sensitivity: 90 dB

Thiele and Small Parameters:

• Free Air Resonance (Fs): 55 Hz
• Resistance (Re): 3.4 Ohm
• Mechanical Factor (QMS): 6.43
• Electrical Factor (Qes): 0.93
• Total Factor (Qts): 0.815
• Equivalent Volume (Vas): 24.26 L
• BL Factor (BL): 5.17 T/M
• Moving Mass (Mms): 20.9 G
• Excursion Max (Xmax): 5 mm
• SD: 210.5 cm^2
• Efficiency: 0.44 %
• Le (1 KHz): 0.461 mH
• EBP: 59.1

Measurements (Per Speaker):

• Overall Diameter: 6.5 x 9.21"" / 165.1 x 233.934 mm
• Mounting Diameter: 5.55 x 8.35"" / 140.97 x 212.09 mm
• Bolt Pattern Diameter: diagonal 7.69"" or 4.5 x 6.2"" / diagonal 195.326 mm or 114.3 x 157.48 mm
• Overall Depth: 3.3"" / 83.82 mm
• Mounting Depth: 2.87"" / 72.898 mm
• Sold as: (Pair)

"
