Experience unmatched bass and sound performance with the 2nd-Gen R-Series Subwoofers from Alpine. Building on the trusted Type R platform, these subwoofers deliver even greater bass output and precision, making them a top choice for audio enthusiasts seeking powerful and reliable sound. Enhanced Motor Structure for Deeper Bass The 2nd-Gen R-Series Subwoofers feature double-stacked magnets that deliver increased motor force, resulting in deeper and more controlled bass. An integrated Faraday ring minimizes distortion, ensuring cleaner bass output, while the Kevlar-treated cone provides durability and consistent performance even at high volumes. Reliable and Flexible Design A polypropylene/ceramic composite dust cap adds rigidity and superior internal damping, reducing vibration for a smoother bass response. This unique material also boasts high heat resistance for continuous performance. The Dual Voice Coil (DVC) design, paired with easy configuration jumpers, offers flexibility for various applications. The innovative "EZ-Change" twist-lock grille system allows simple installation and removal of an optional grille, compatible with the KTE-10G Grille System (sold separately), for added cone protection. Accurate Sound Reproduction Utilizing Alpine’s exclusive High Amplitude Multi-Roll (HAMR) Surround Technology, the subwoofer’s cone achieves 20mm of total excursion while efficiently moving air and staying cool. This advanced design ensures highly accurate sound reproduction, perfect for listeners who demand the best in audio clarity and impact. Upgrade to the 2nd-Gen R-Series Subwoofers for a superior bass experience that blends innovation, durability, and Alpine’s legacy of sound excellence.
NEXT-GEN SOUND PERFORMANCE
Since the Type R platform, Alpine’s R-Series sound system family has been known for its incredible output and reliable performance. Now Alpine introduces the next-generation of sound performance with the 2nd-Gen R-Series Subwoofers with even more bass output.
NEW MOTOR STRUCTURE
The 2nd-Gen R-Series Subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.
Additional Reliability
A new polypropylene/ceramic composite dust cap ensures rigidity while also providing incredible internal damping (vibration absorption) to smooth out the bass response and reproduce tight bass. This premium, unique material also has higher heat reliability that ensures non-stop bass performance.
Flexible Application

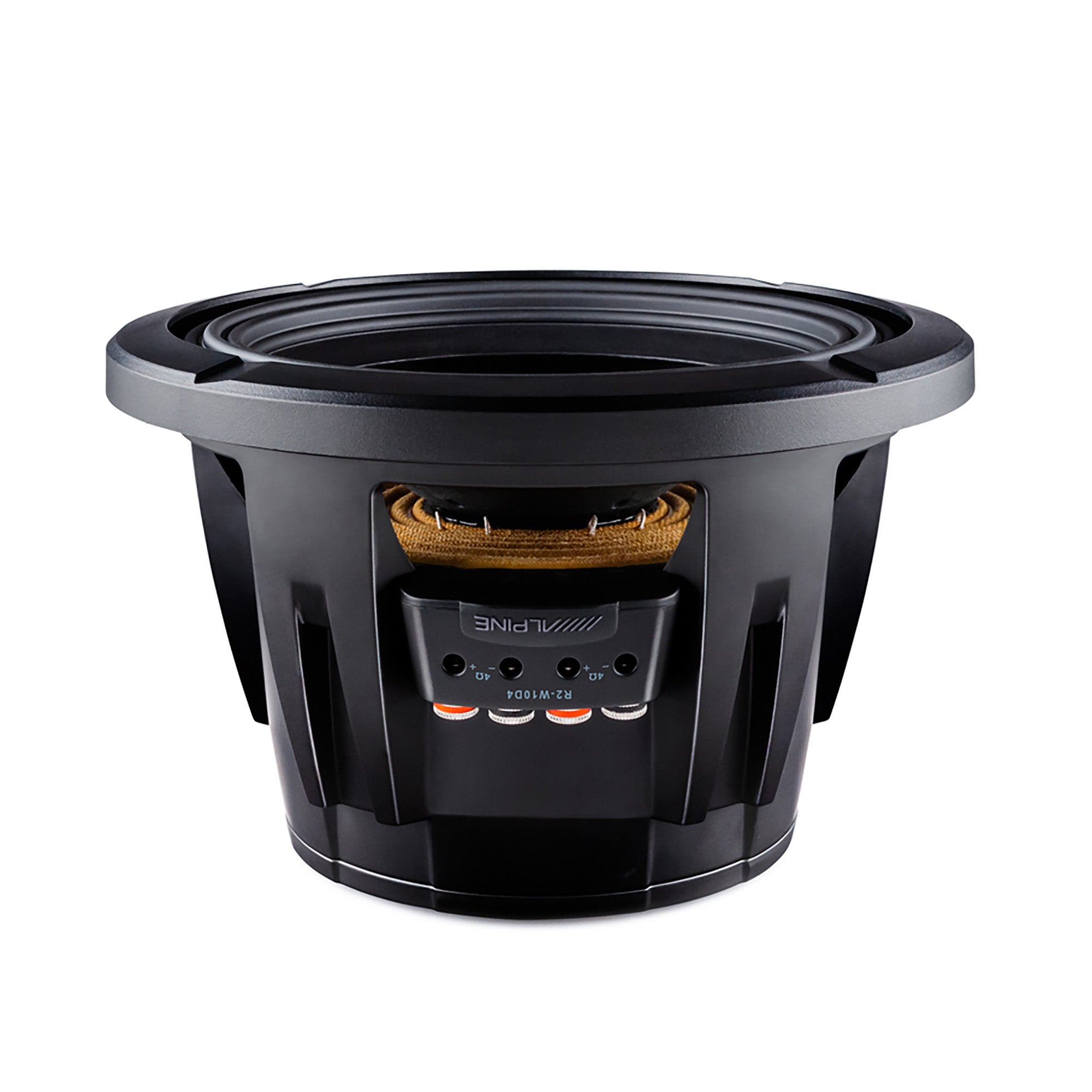

The 2nd-Gen R-Series Subwoofers contain a Dual Voice Coil (DVC) with easy configuration jumpers that allow for flexible applications. A new “EZ-Change” twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone. The R2-W10D4 is compatible with the KTE-10G Grille System (sold separately).
Increased Accuracy
The 2nd-Gen R-Series Subwoofers contain Alpine’s High Amplitude Multi-Roll (HAMR) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 20mm of total cone excursion and motion that creates incredible accuracy from the subwoofer.
|
Size | 10-inch |
Voice Coil | DVC |
Impedance | 4 ohms |
RMS Power Rating (Watts) | 750 |
Peak Power Rating (Watts) | 2250 |
| Cone Material | Kevlar-Reinforced Pulp |
| Surround Material | Rubber |
| Free Air | No |
| Sensitivity | 82.8dB at 1 Watt |
| Frequency Response | 26-200hz |
Top Mount Depth (Inches) | 6 |
| Bottom Mount Depth (Inches) | |
| Cutout Diameter (Inches) | 9 1/16 |
| Vas (liters) | |
| Fs (Hz) | 32 |
| Xmax (millimeters) | 20 |
| Warranty | 1 Year |
