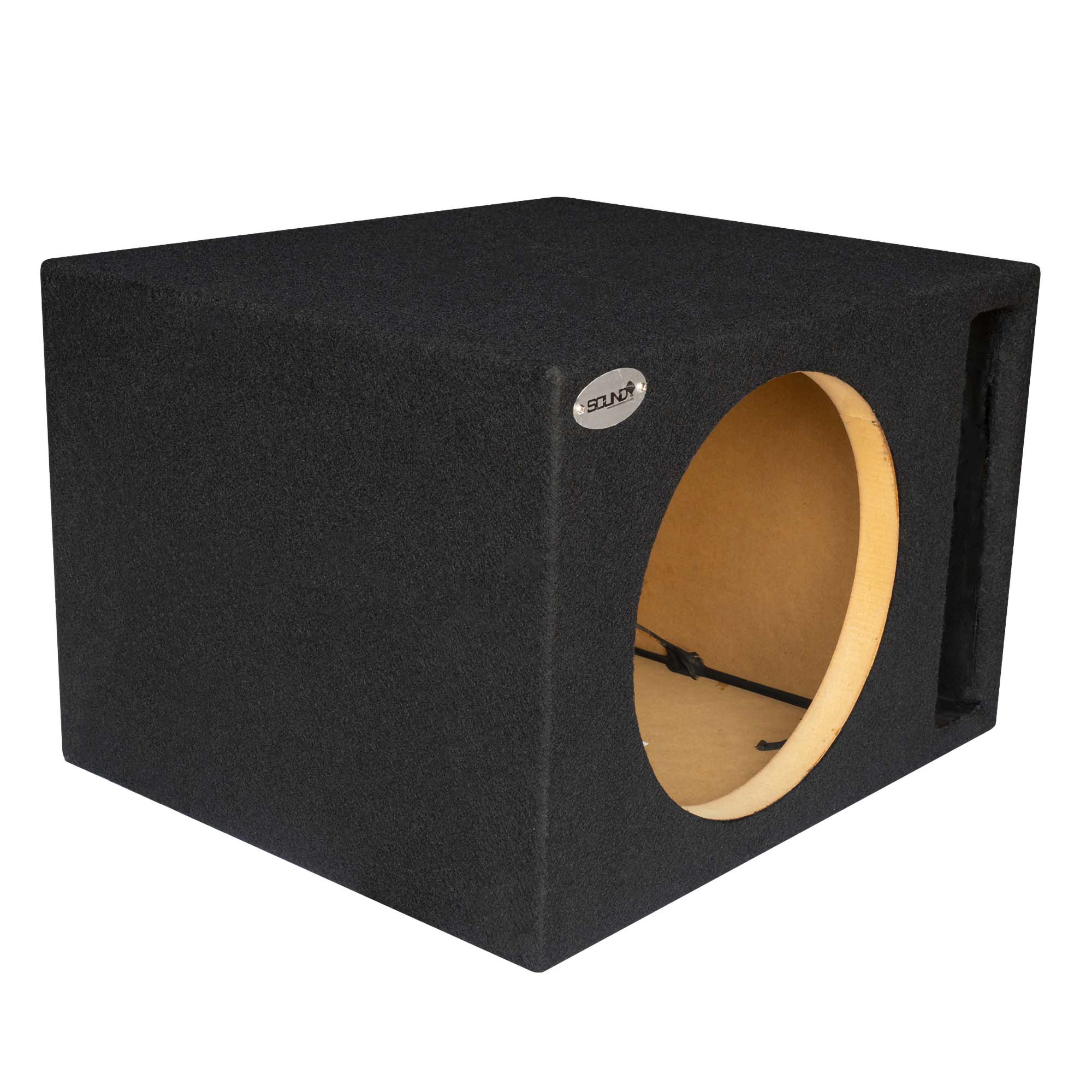

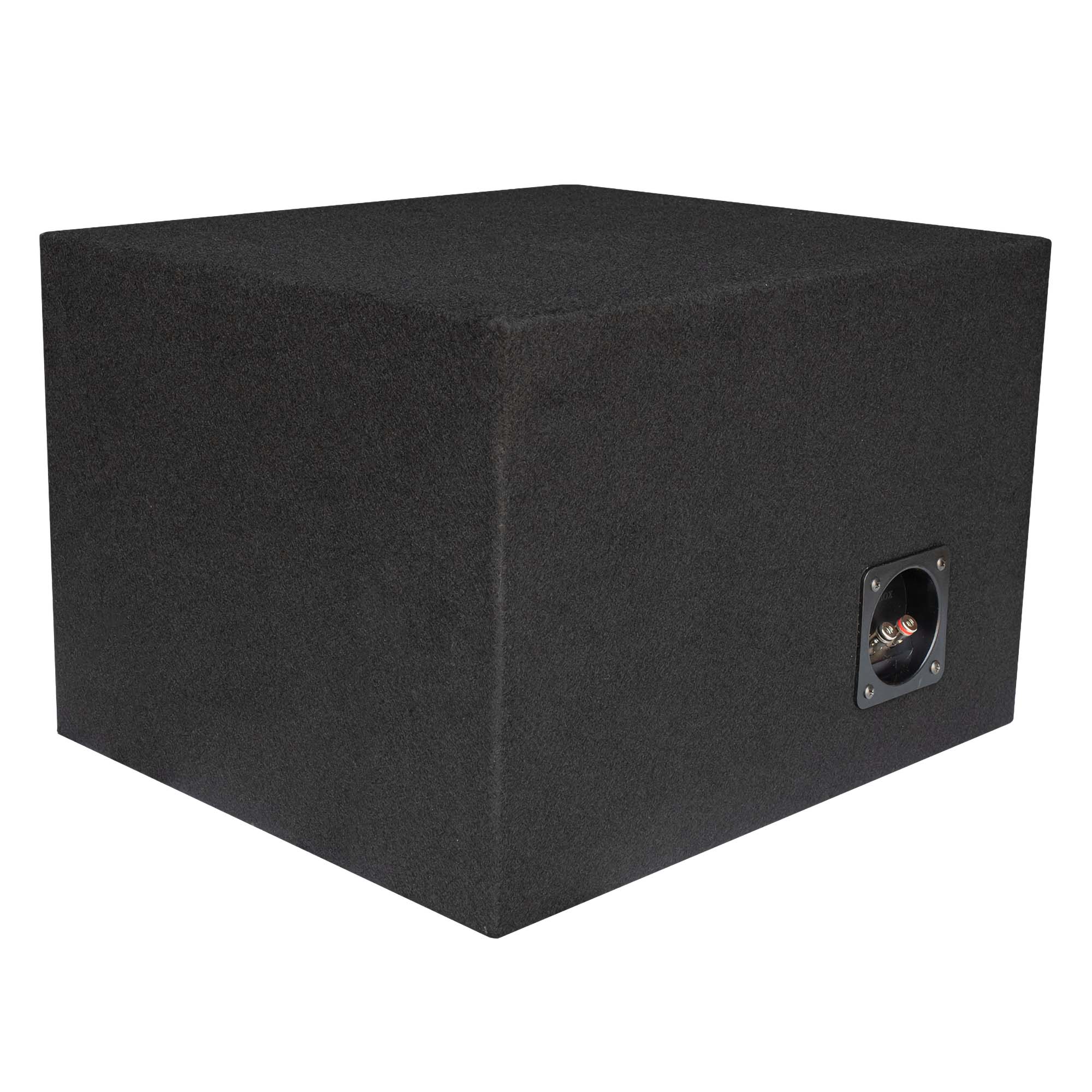

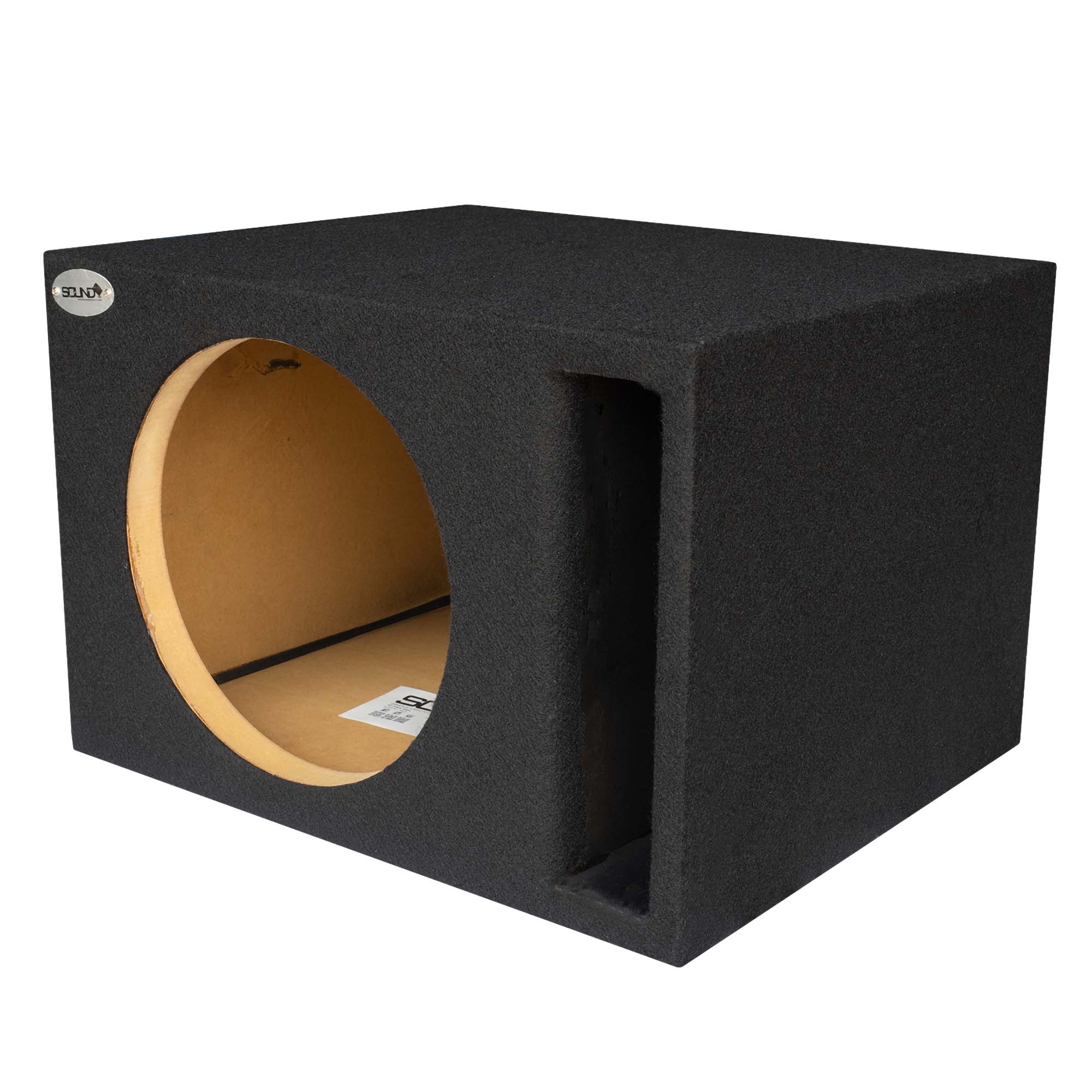

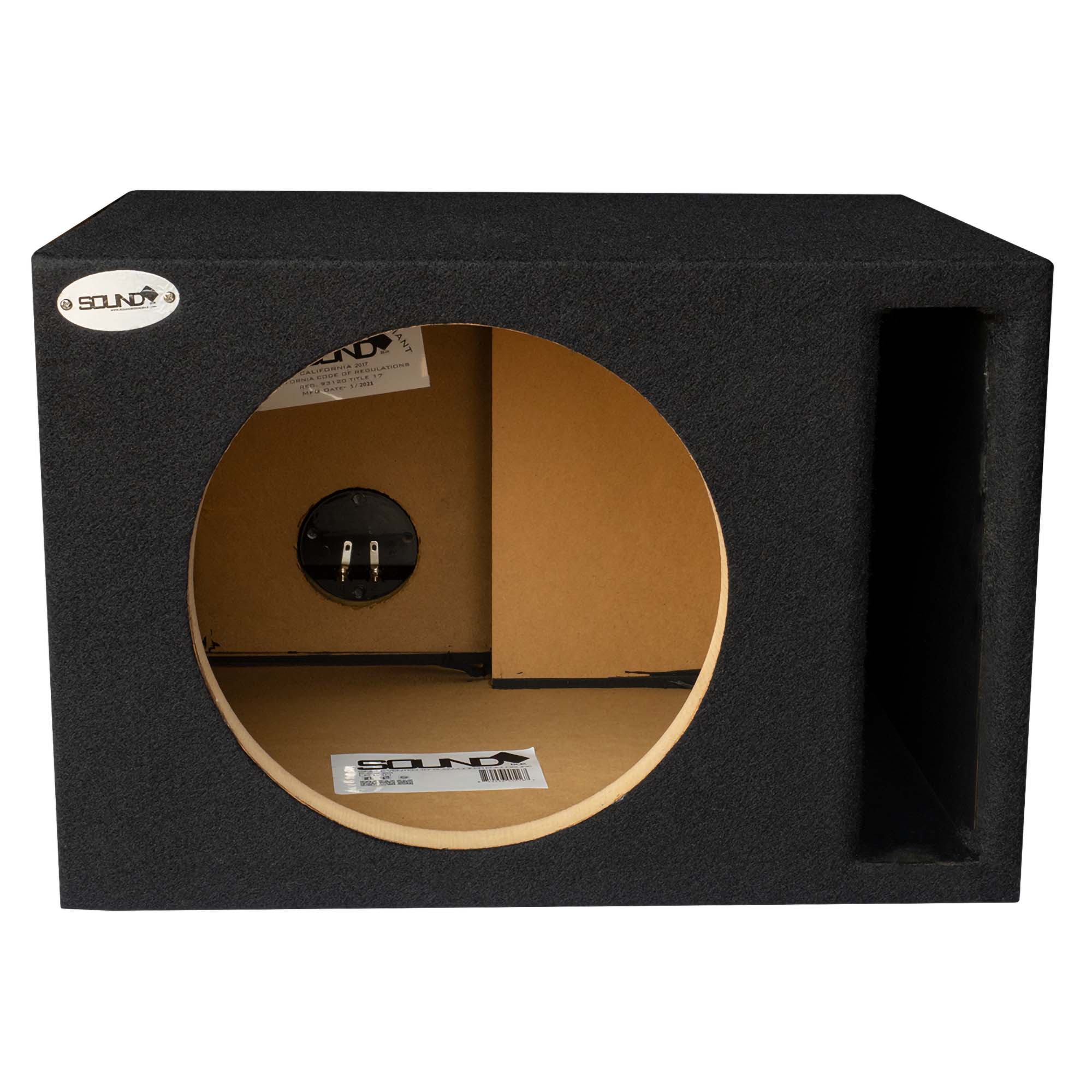

Upgrade your car?s audio system with the Alpine R2-W10D4 Subwoofer and SoundBox E Series Vented Enclosure Bundle, delivering deep, accurate bass with high-performance sound clarity. Powerful Subwoofer Performance The Alpine R2-W10D4 10 R-Series Subwoofer is engineered for precision bass reproduction, featuring a 750W RMS power rating with a double-stacked magnet motor structure for tighter control and deeper bass output. An integrated Faraday ring minimizes distortion, ensuring clean and powerful bass notes. Optimized Enclosure for Maximum Bass Output Paired with the SoundBox E Series Single 10 Vented Subwoofer Enclosure, this system is designed for maximum airflow, creating richer, fuller bass tones. The vented design enhances low-frequency response, making it perfect for deep, resonant bass performance. Superior Build Quality & Reliability Alpine?s High Amplitude Multi-Roll (HAMR) surround technology increases cone excursion while maintaining stability, resulting in crystal-clear bass even at high volumes. The durable polypropylene/ceramic composite dust cap absorbs vibrations, ensuring a smooth bass response while protecting the subwoofer. Effortless Installation & Compatibility With a Dual Voice Coil (DVC) configuration, the R2-W10D4 provides flexible wiring options for different impedance settings. Its EZ-Change twist-lock grille mounting system makes installation simple while ensuring added protection for your subwoofer. The SoundBox vented enclosure is designed for an easy and secure fit, providing exceptional durability and long-term performance. Perfect Power Match For optimal power handling, pair the Alpine R2-W10D4 with an R-Series amplifier such as the Alpine R2-A75M mono amp for powerful, distortion-free bass output. Take your car?s audio system to the next level with the Alpine R2-W10D4 Subwoofer and SoundBox E Series Vented Enclosure Bundle, delivering deep, precise bass and unmatched sound quality!

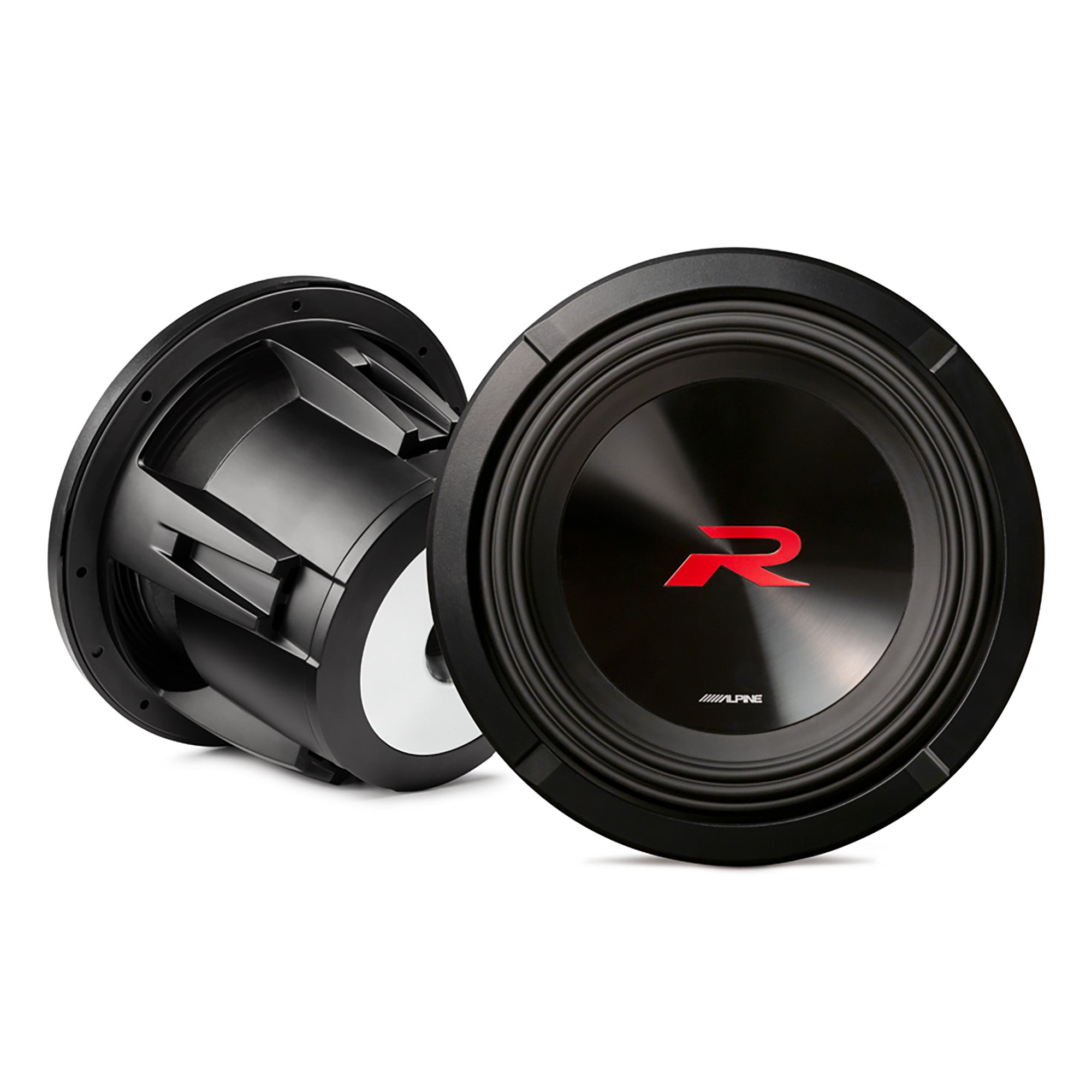

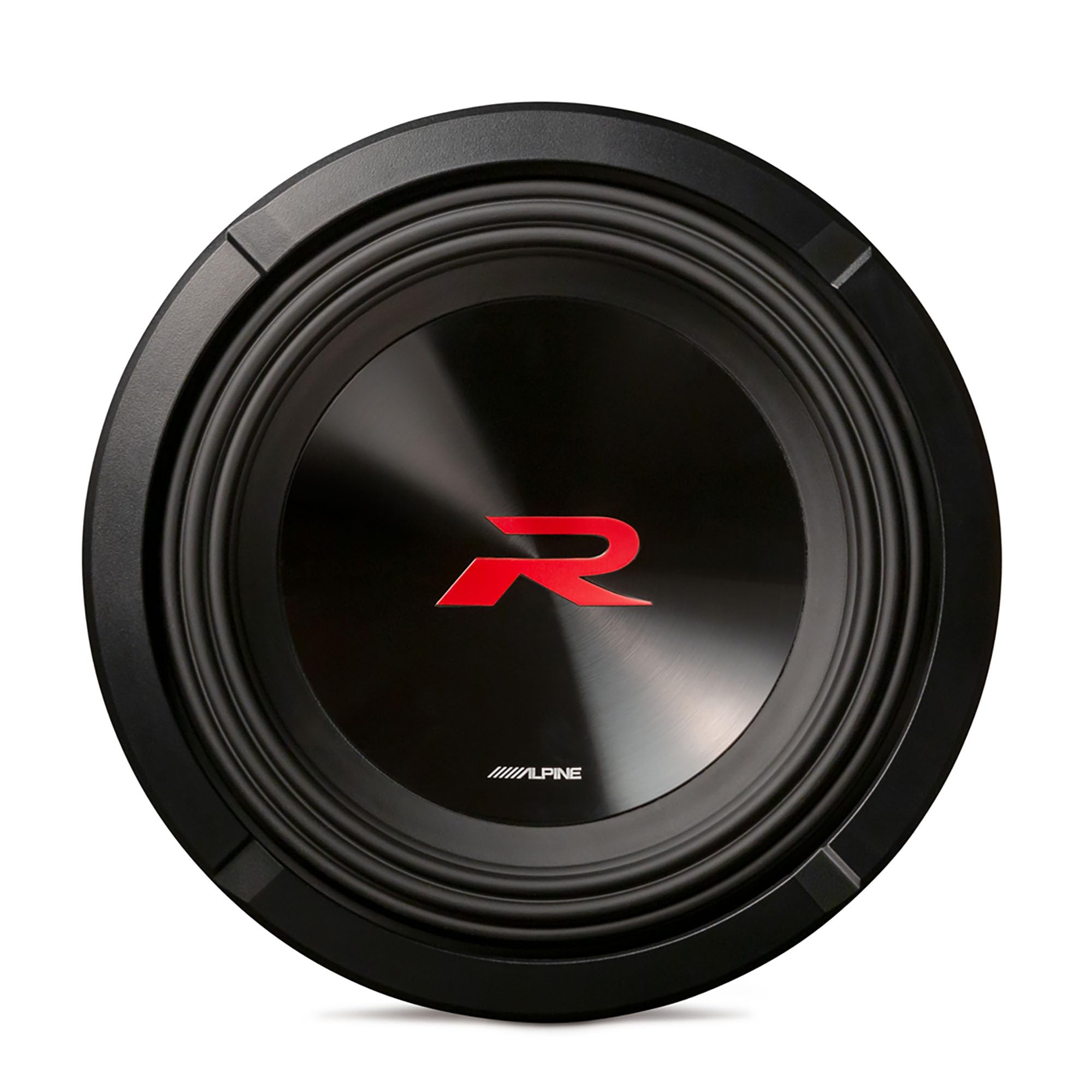

Alpine R2-W10D4
NEXT-GEN SOUND PERFORMANCE
Since the Type R platform, Alpine’s R-Series sound system family has been known for its incredible output and reliable performance. Now Alpine introduces the next-generation of sound performance with the 2nd-Gen R-Series Subwoofers with even more bass output.
NEW MOTOR STRUCTURE

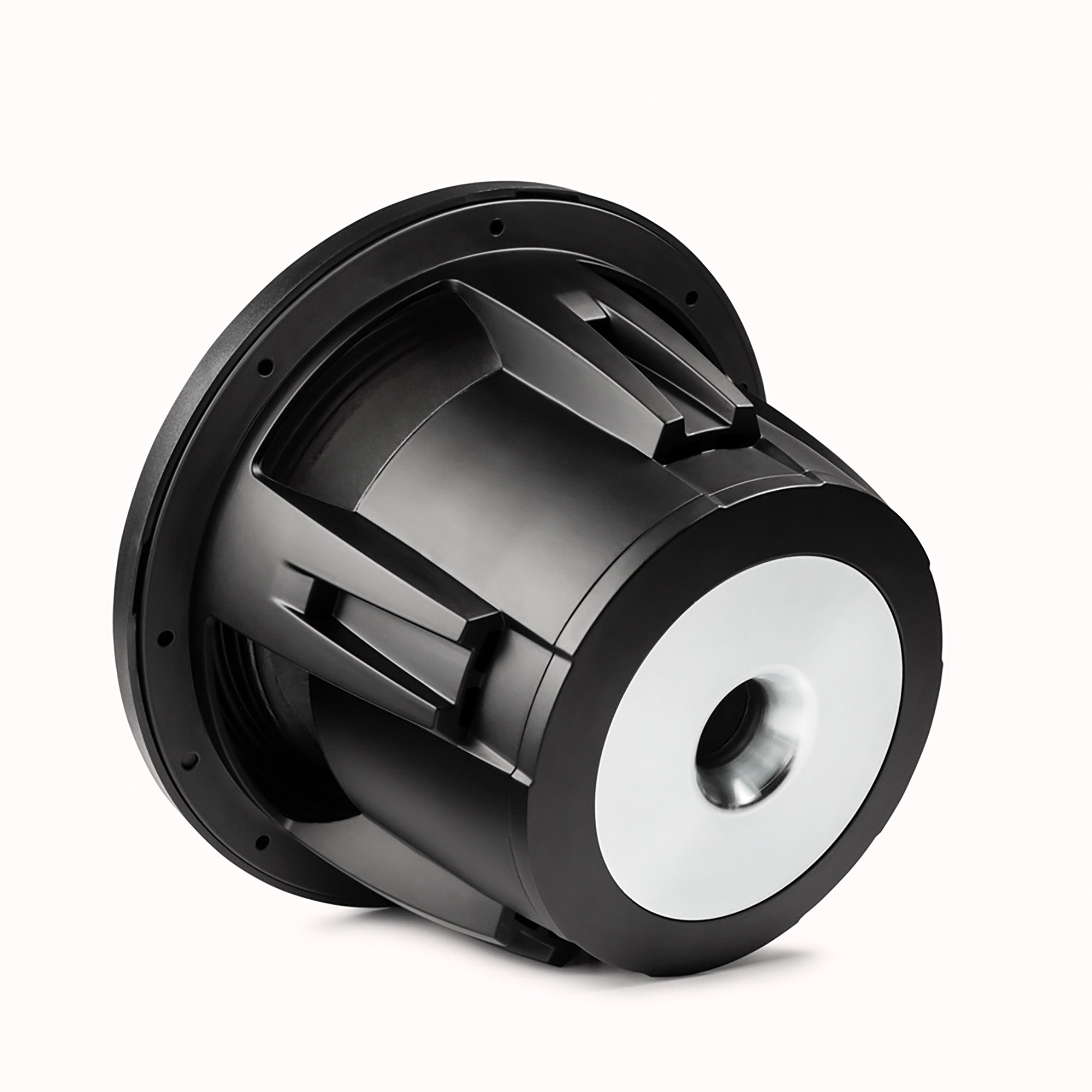

The 2nd-Gen R-Series Subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.
Additional Reliability
A new polypropylene/ceramic composite dust cap ensures rigidity while also providing incredible internal damping (vibration absorption) to smooth out the bass response and reproduce tight bass. This premium, unique material also has higher heat reliability that ensures non-stop bass performance.
Flexible Application

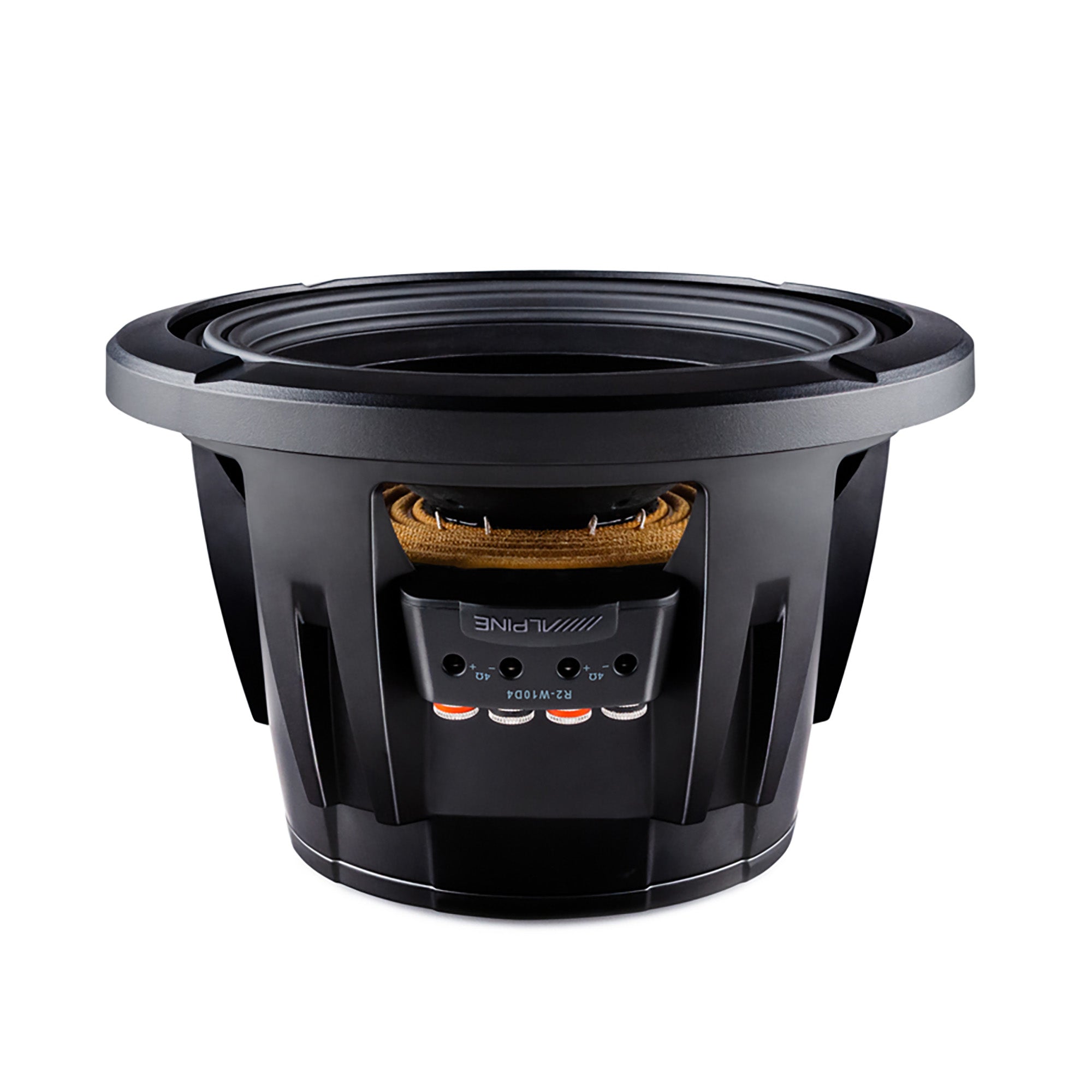

The 2nd-Gen R-Series Subwoofers contain a Dual Voice Coil (DVC) with easy configuration jumpers that allow for flexible applications. A new “EZ-Change” twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone. The R2-W10D4 is compatible with the KTE-10G Grille System (sold separately).
Increased Accuracy
The 2nd-Gen R-Series Subwoofers contain Alpine’s High Amplitude Multi-Roll (HAMR) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 20mm of total cone excursion and motion that creates incredible accuracy from the subwoofer.
|
Size | 10-inch |
Voice Coil | DVC |
Impedance | 4 ohms |
RMS Power Rating (Watts) | 750 |
Peak Power Rating (Watts) | 2250 |
| Cone Material | Kevlar-Reinforced Pulp |
| Surround Material | Rubber |
| Free Air | No |
| Sensitivity | 82.8dB at 1 Watt |
| Frequency Response | 26-200hz |
Top Mount Depth (Inches) | 6 |
| Bottom Mount Depth (Inches) | |
| Cutout Diameter (Inches) | 9 1/16 |
| Vas (liters) | |
| Fs (Hz) | 32 |
| Xmax (millimeters) | 20 |
| Warranty | 1 Year |
