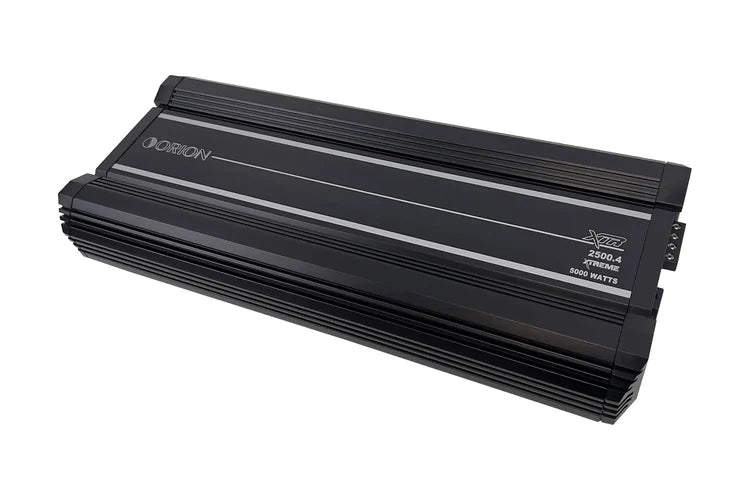

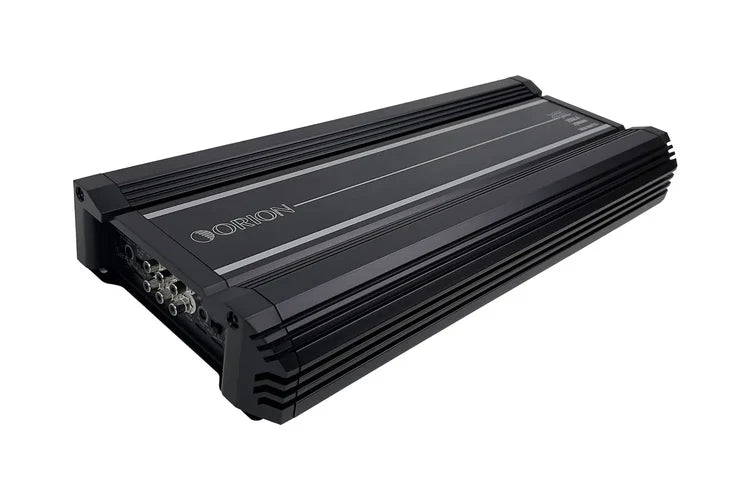

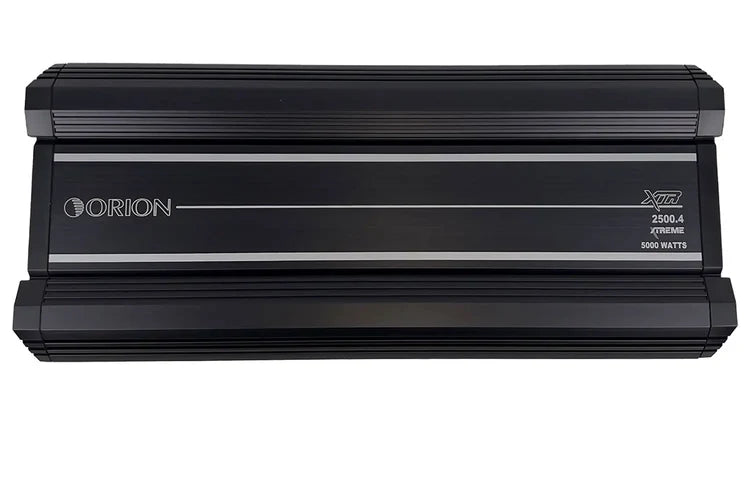

ORION XTR2500.4 XTR Series 2500W RMS 4-Channel Class-AB Amplifier
Unleash Auditory Excellence
The ORION XTR2500.4 XTR Series 2500W RMS 4-Channel Class-AB Amplifier reigns supreme in audio performance. With advanced features and precision engineering, this amplifier transcends traditional boundaries, delivering a fusion of power, accuracy, and control to your car audio system.
Immersive Sound Reproduction
Rediscover your music in its truest form. Every note, beat, and melody – from the softest to the most dynamic – is meticulously reproduced for an immersive and authentic listening experience.
Supreme Power and Precision
Experience your music with supreme power and precision. The ORION XTR2500.4 XTR Series Amplifier seamlessly integrates unparalleled power with exceptional audio quality, creating an auditory masterpiece that resonates deeply.
Elevate Your Drive
Step into the realm of supreme excellence with the ORION XTR2500.4 XTR Series 2500W RMS 4-Channel Class-AB Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical magnificence. It's time to embrace sound in its purest form.
Class AB Amplification - Experience the pinnacle of efficiency and precision with Class AB amplification for supreme and accurate sound reproduction.
2500 Watts RMS - Immerse yourself in a world of supreme audio excellence with 2500 Watts RMS, delivering uncompromising and clear sound performance.
Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
Compact and Stylish Design - The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
12dB Octave Low-Pass Filter

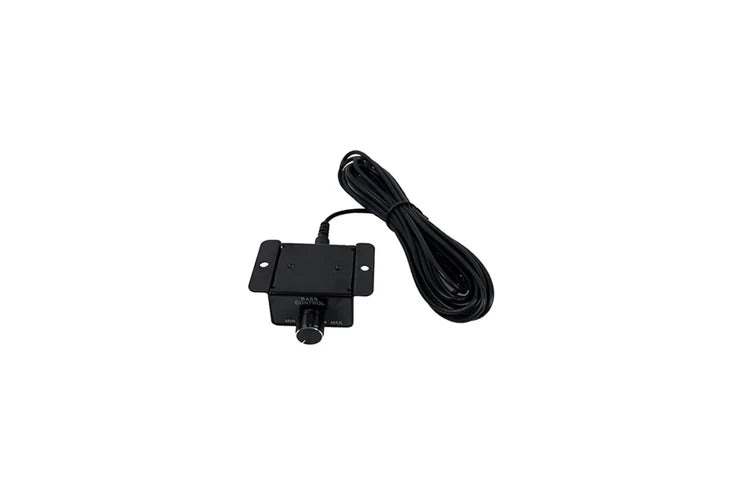

Remote Gain Controller Included
Electronic Crossover Network
Bass Boost Circuit
Power and Protection LED Indicators
Soft Turn-on/Turn-off Turn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 400W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 650W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 1250W

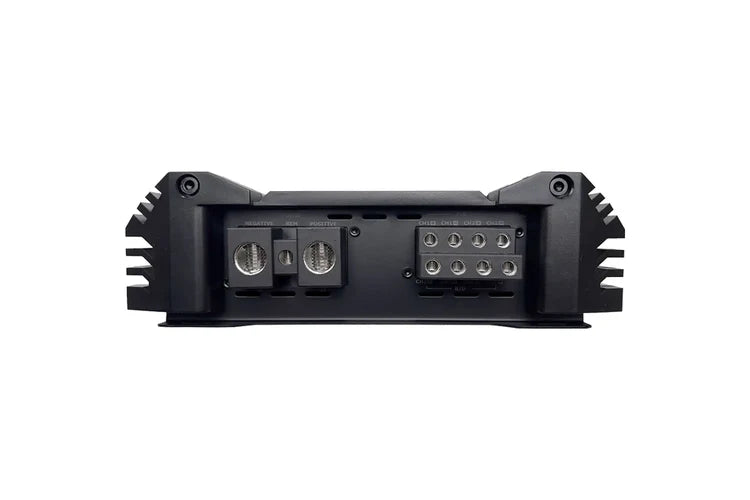

POWER TERMINAL MANAGEMENT
Positive Terminals: 1 x 0 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.
- Frequency Response: 20Hz - 35kHz
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (50-1.5kHz/500-15kHz)
- Low Pass Crossover Continuously variable (50-400Hz)
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >60%
- Damping Factor: 100dB
- Signal to Noise Ratio: >95dB
- T.H.D. & Noise: 0.5%
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 200A recommended
- Dimensions (L x W x H): 21.26" x 9.25" x 2.75" (540x235x70mm)
