• High-Performance Midrange: Enjoy clear and detailed midrange frequencies with these 3" coated paper cone speakers from B2 Audio RAGE series.
• Silk dome tweeters and coated paper cone midwoofers deliver warm, full sound with a wide frequency response.
• Enhanced Sound Quality: Designed with optimized Thiele & Small parameters for superior audio performance.
• Complete Audio Solution: Includes 3-way crossovers for seamless integration into your car audio system.

B2 Audio RAGE 6.5" 3-Way 4-Ohm Component Set w/ 3" Mids 1" Tweeters & Crossovers

This Listing Includes:

• (2) 6.5" 100W RMS Midrange Speakers
• (2) Silk Dome 10W RMS Tweeters

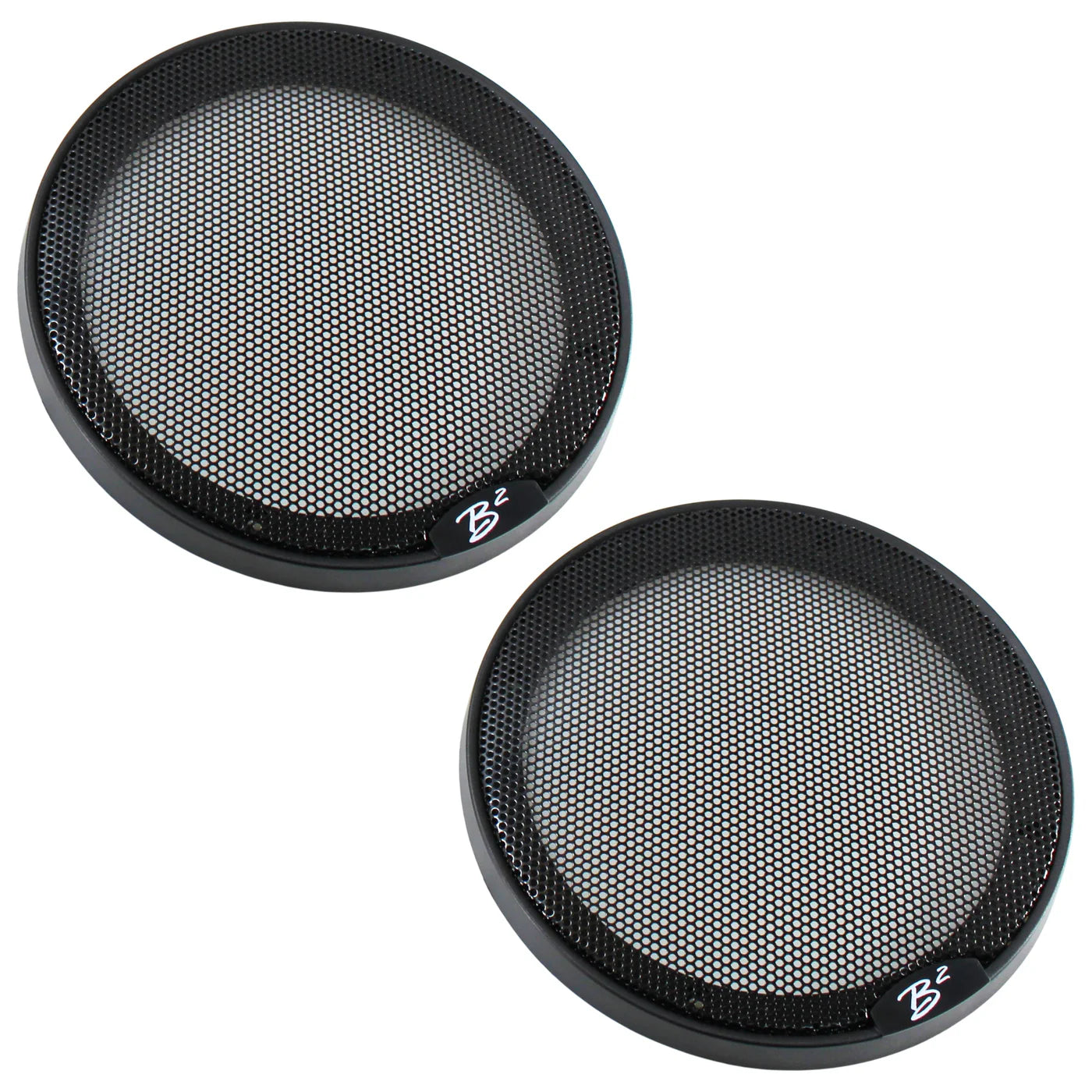

• (2) Grilles for the 6.5" Speakers
• (2) 3" 80W 6 Ohm Coated Paper Cone Midrange Speakers

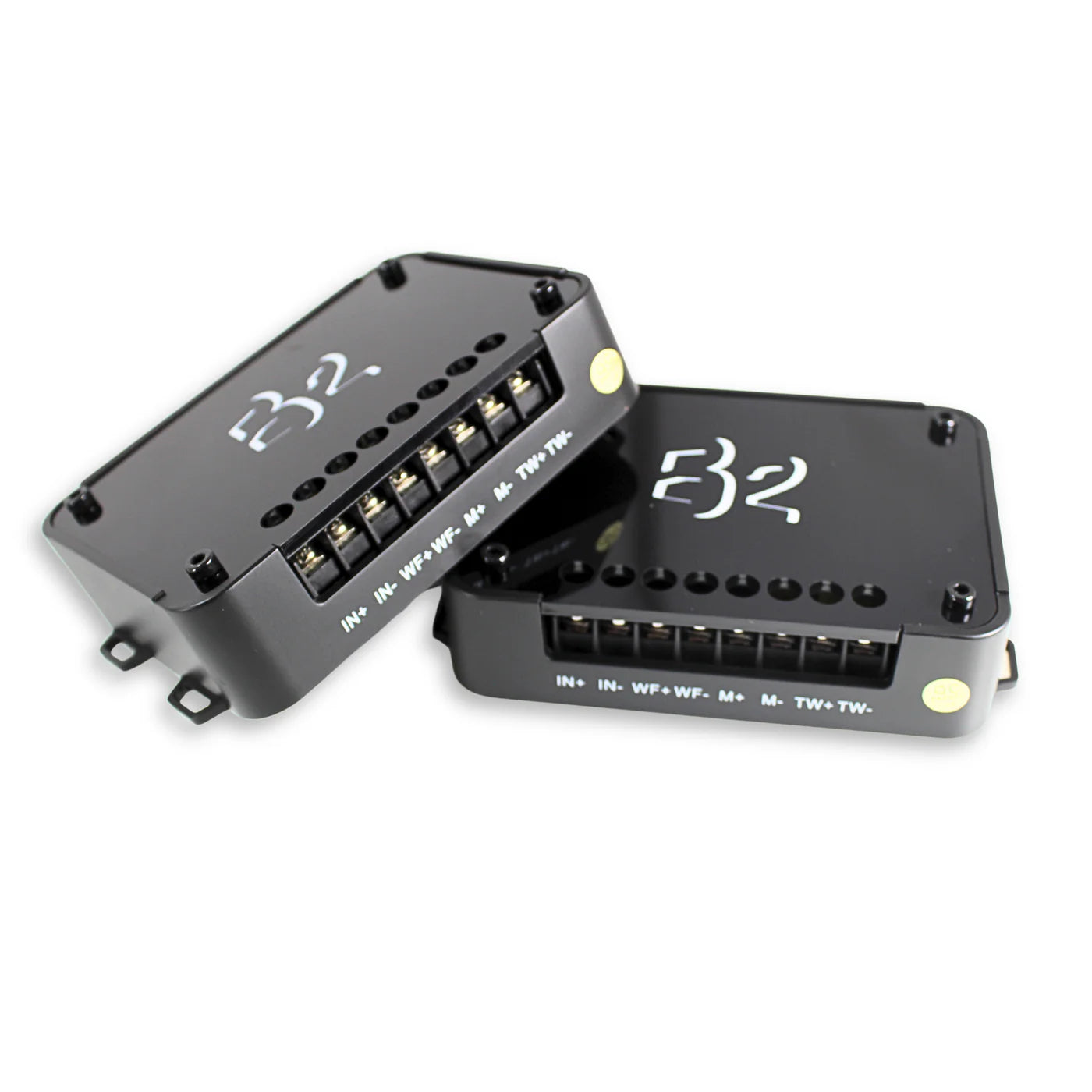

• (2) 3-Way Crossovers

The RAGE63, represents a significant advancement in the audio frequency response. This configuration replaces the standard two-way crossover with a three-way crossover. The crossover points are set at 400 Hz and 4000 Hz, creating an effective bandpass from 400 Hz to 4000 Hz, optimized for the midrange.

The midrange resonance frequency is precisely an octave below the lower crossover point, extending its response up to an impressive 10 kHz. The shallow mount 3.2" frame ensures flexible installation options, while its compact size enhances the audio reproduction capabilities of the coated paper cone.

For optimal performance, the RAGE63 is ideally used in an active configuration with a Digital Signal Processor (DSP). However, even with passive components, it delivers excellent sound quality, making it a cost-effective yet high-performance choice.

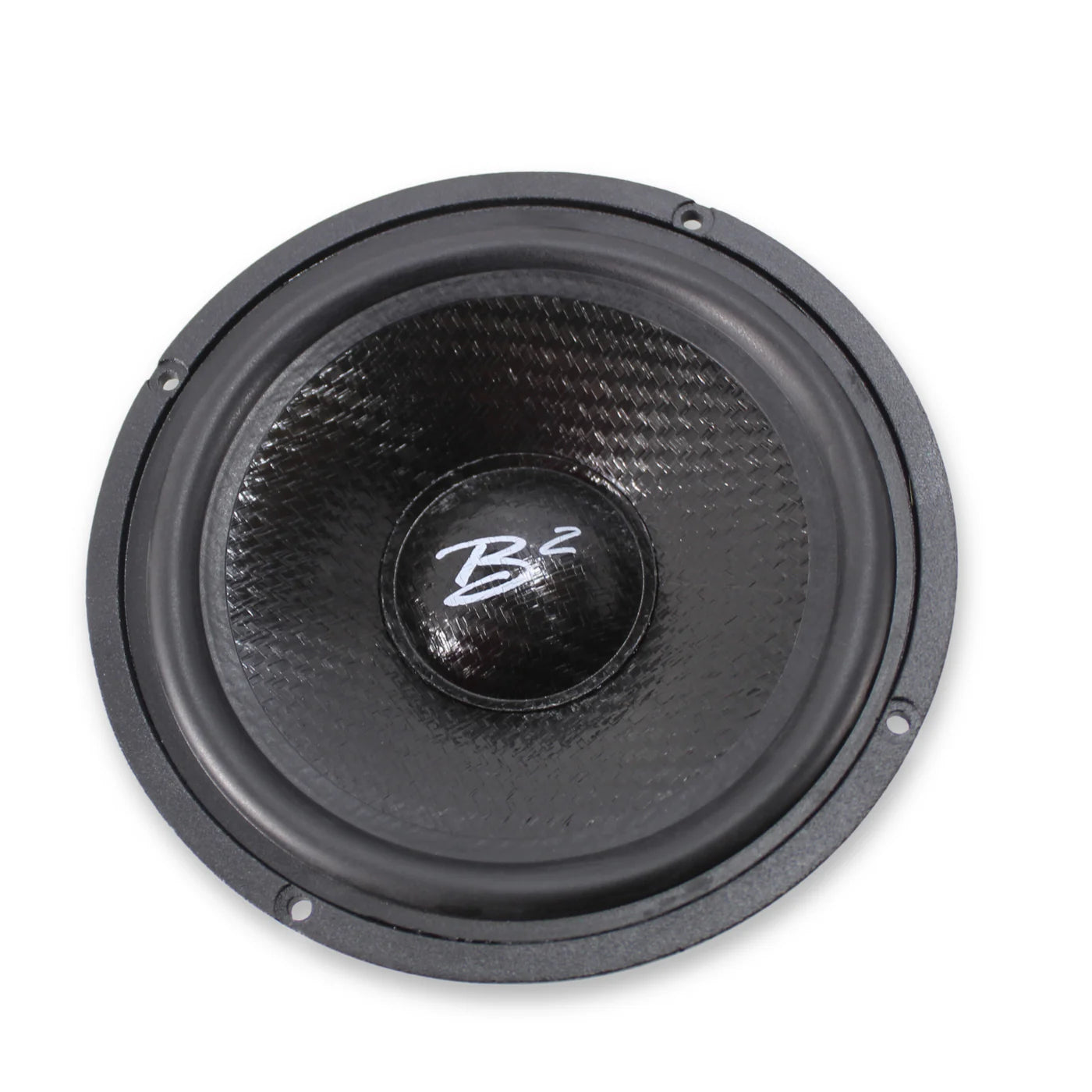

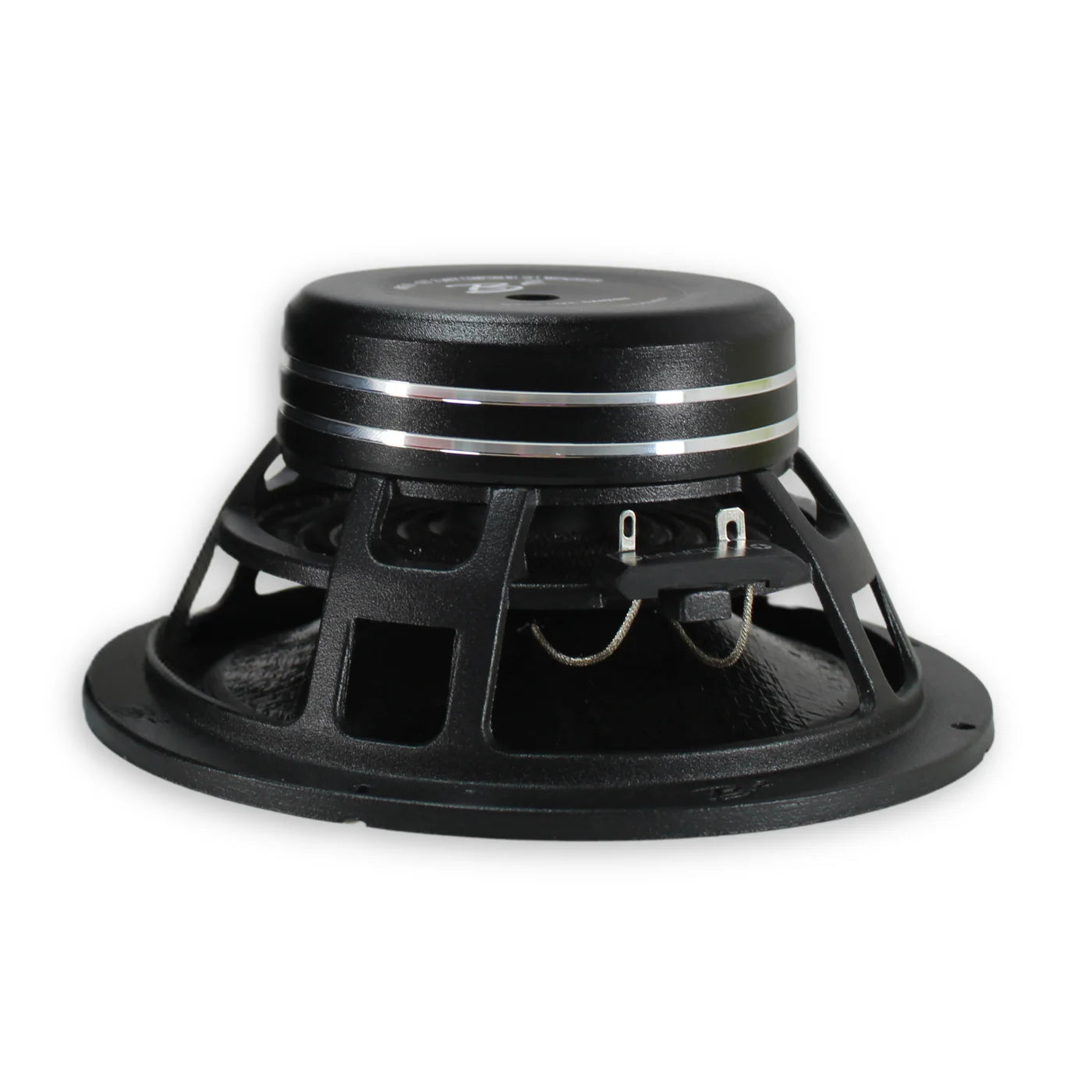

6.5" Midrange Specifications:

• RMS Power Handling: 100W
• Maximum Power Handling: 200W
• Nominal Impedance: 4 Ohm
• Voice Coil Diameter: 1.2"
• Frequency Response: 50 Hz - 25 KHz
• Sensitivity: 87 dB
• Free Air Resonance (Fs): 60 Hz
• Resistance (Re): 3.6 ohm
• Mechanical Factor (Qms): 7.21
• Electrical Factor (Qes): 0.9
• Total Factor (Qts): 0.8
• Equivalent Volume (Vas): 7.78 L
• Compliance (Cms): 305 um/N
• BL Factor (BL): 5.44 TM
• Moving Mass (Mms): 15.85 g
• Overall Diameter: 6.49" / 165mm
• Mounting Diameter: 5.55" / 141mm
• Overall Depth: 3.18" / 81mm
• Mounting Depth: 2.83" / 72mm

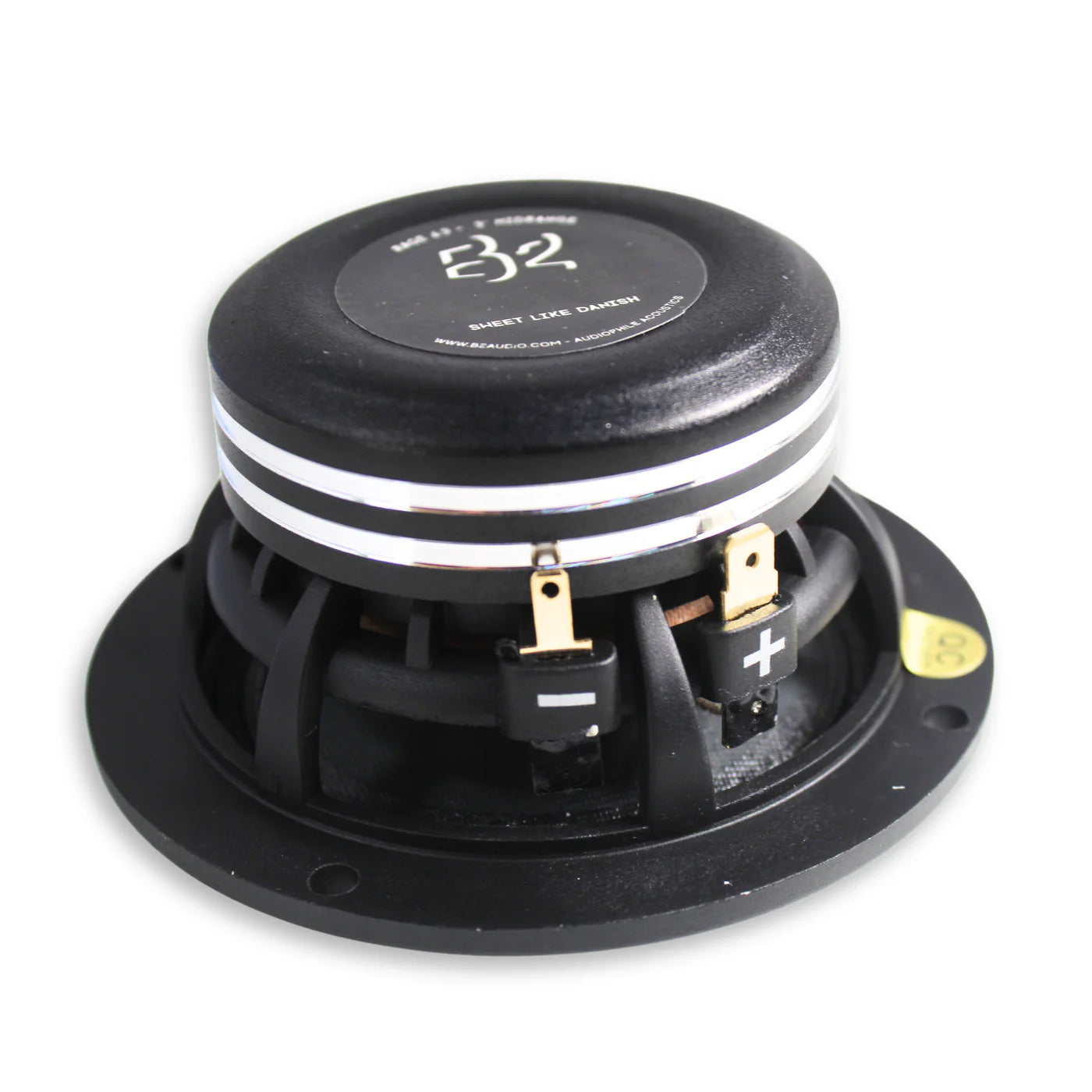

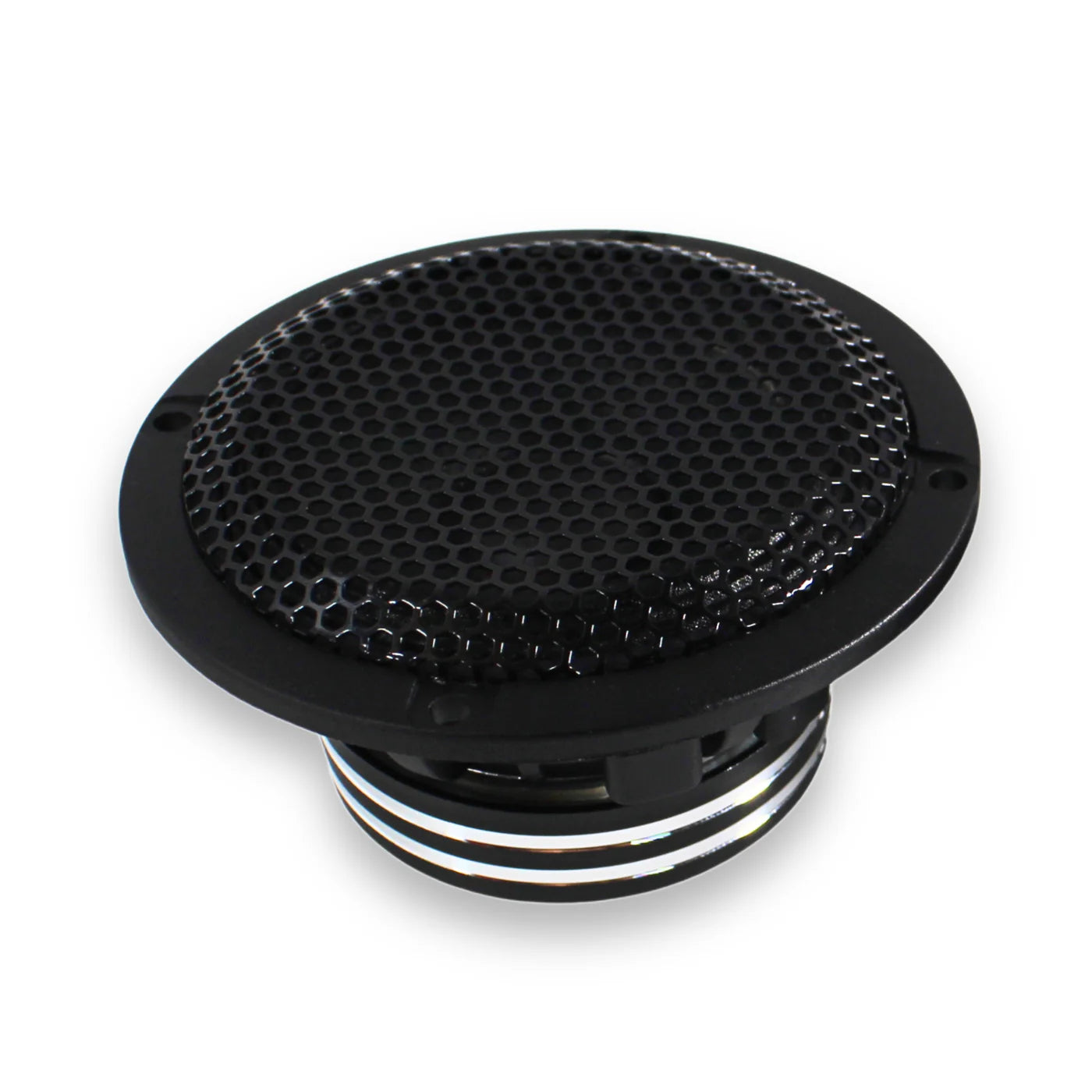

3" Midrange Specifications:

• RMS Power Handling: 80W
• Maximum Power Handling: 160W
• Nominal Impedance: 6 Ohm
• Voice Coil Diameter: 1"
• Frequency Response: 200 Hz ~ 10 KHz
• Sensitivity: 83.7 dB
• Free Air Resonance (Fs): 209 Hz
• Resistance (Re): 5.34 ohm
• Mechanical Factor (Qms): 6
• Electrical Factor (Qes): 1.28
• Total Factor (Qts): 1.05
• Overall Diameter: 3.38" / 80mm
• Mounting Diameter: 2.52" / 64mm
• Overall Depth: 1.58" / 40.3mm
• Mounting Depth: 1.14" / 29mm

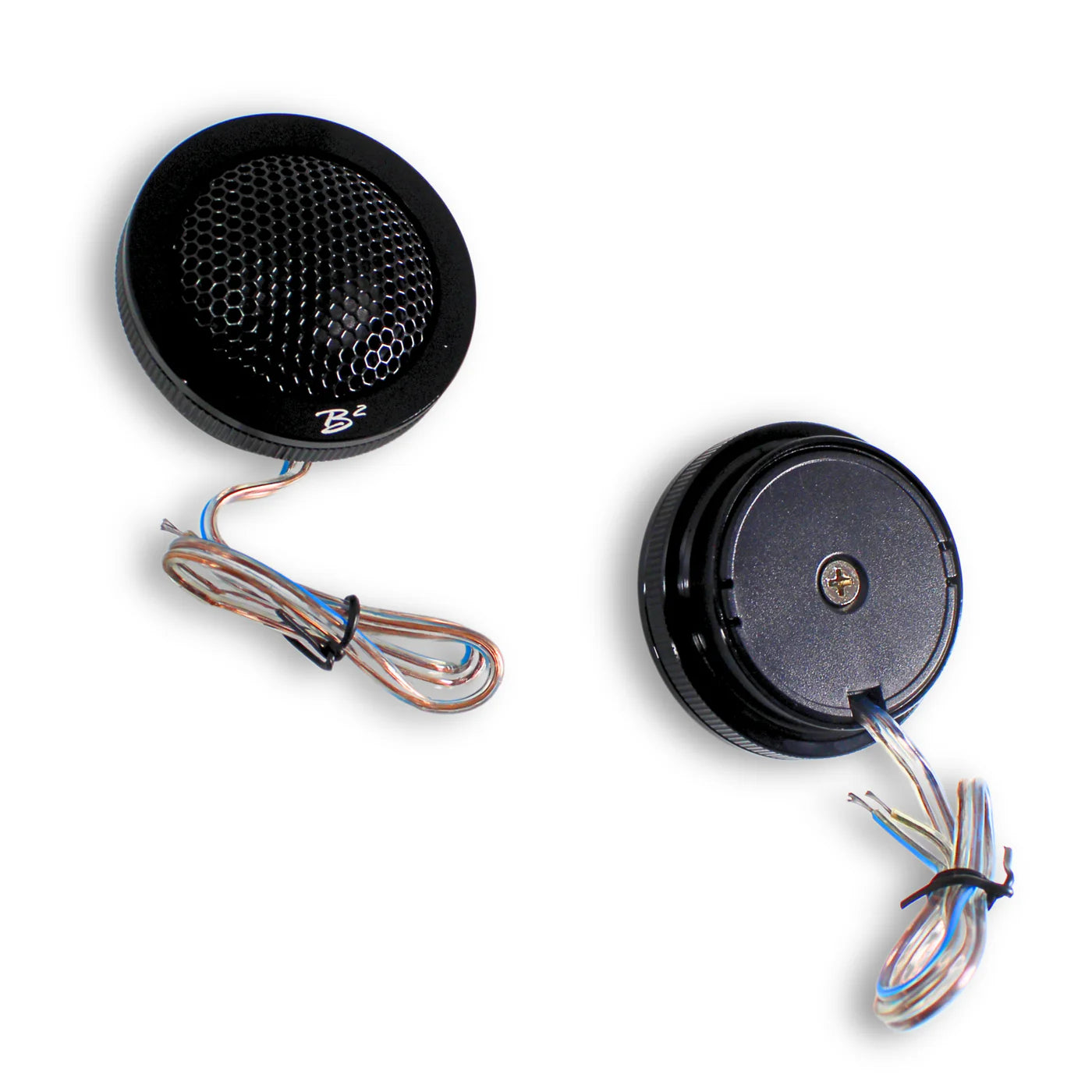

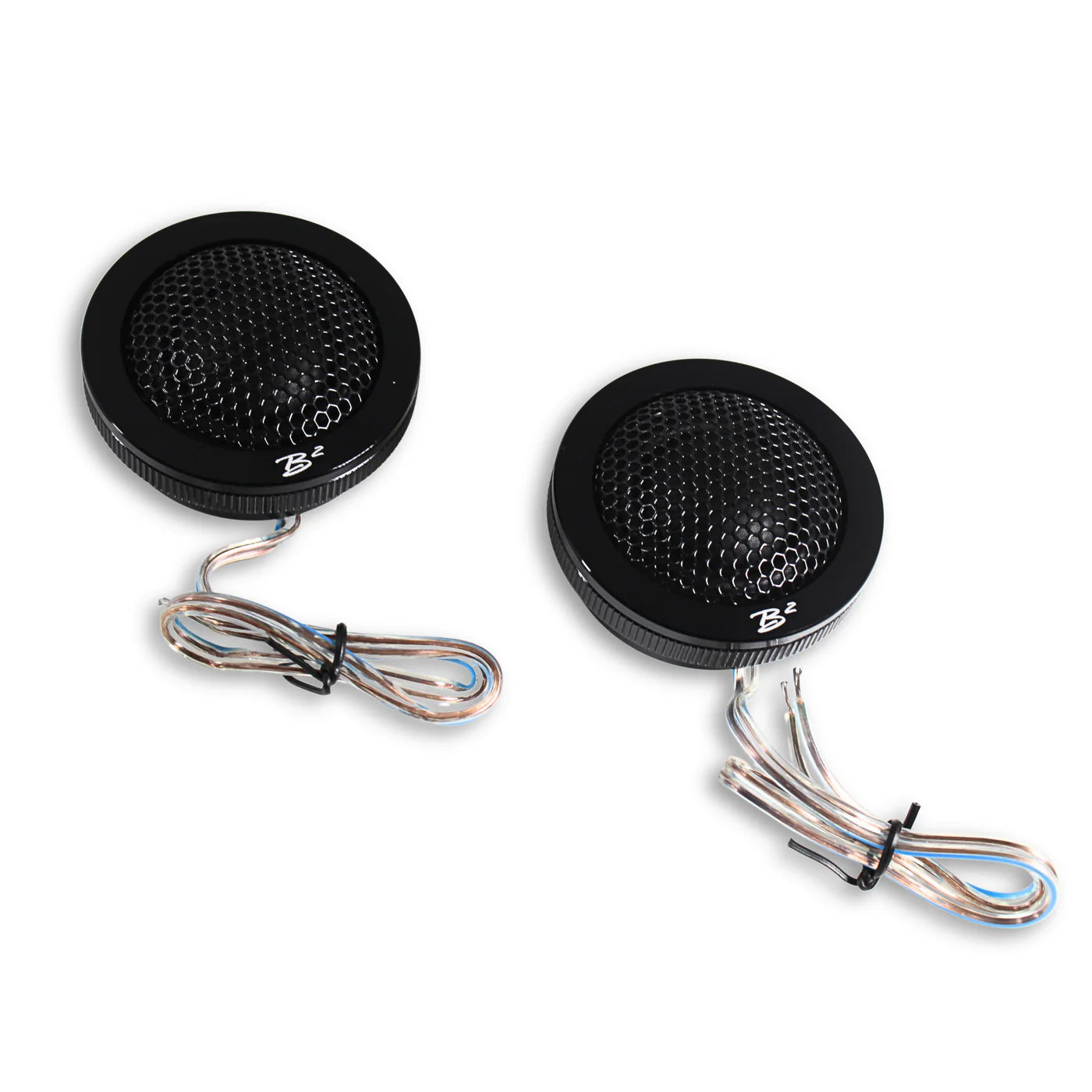

1" Tweeter Specifications:

• RMS Power Handling: 30W
• Max Power Handling: 60W
• Nominal Impedance: 4 Ohm
• Voice Coil Diameter: 1"
• Sensitivity: 84 dB
• Free Air Resonance (Fs): 1250 Hz
• Resistance (Re): 3.9 ohm
• Mechanical Factor (Qms): 0.76
• Electrical Factor (Qes): 2.43
• Total Factor (Qts): 0.58
• Equivalent Volume (Vas): 0.001 L
• Compliance (Cms): 5.7 um/N
• BL Factor (BL): 6 TM
• Moving Mass (Mms): 2.8 g
• Overall Diameter: 2.20" / 56mm
• Mounting Diameter: 1.86" / 47.4mm
• Overall Depth: 1.01" / 25.8mm
• Mounting Depth: 0.39" / 10.1mm

Package Dimensions:

• Length: 13.50 inches
• Width: 19.50 inches
• Height: 5 inches
• Weight: 11.45 pounds
